Ag Spray PRO UTV Sprayers 65G/D252/Electric - Graneer

Ag Spray PRO UTV Sprayers 65G/D252/Electric

Manufacturer: Ag Spray Equipment
Model # 5303229
$4,626.00 - $4,626.00
$4,626.00
$4,626.00 - $4,626.00
$4,626.00
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





The 5303229 PROUTV Series Gas Engine configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it's utility, municipality, rangeland or ag. The gas engine version is designed for the tailgate to be open on most models of UTV. The 12 volt cab mounted electric controls allow the operator adjust the pressure and turn the boom sections on/off from inside the cab.  The steel base has fork lift pockets incorporated for convenient installation and removal.  The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out.  Equipped with a GX160 Honda engine coupled to a 252 Diaphragm Pump to provide reliable pressure that delivers plenty of volume and is rated up to 6.1 GPM and a max of 290 PSI.  The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose.   Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.

FEATURES

  • Fully drainable tank with molded in outlet fitting, no lip in the tank to hold back product
  • Tank baffle to limit sloshing for better handling
  • Lid gasket to prevent liquid leaking when going over rough terrain
  • Heavy skid with Fork Lift pockets for easy installation/removal
  • 12 threaded inserts in each tube for additional accessory mounting
  • Electric 12V controls for in-cab pressure and 3 section on/off control
  • Boom options of traditional or boomless in 3 sections
  • Shutoff valve on handgun hose inlet
    • Prevents the hose from being charged with chemical until you want to use it
    • Eliminates the need to flush the handgun line when switching chemicals when you didn’t charge the line and use the handgun
    • Prevents the handgun from being the shutoff and potentially leaking
  • Gas units designed for tailgate to be down with boom mounts attaching directly to the skid base, included
  • 4 Ratchet Strap tie down slots on under side of tank retention tubes for secure installation

BOOM MUST BE ORDERED SEPARATELY.

Spray boom options include –
6 Row 21’ Pro Boom w/QJD
8 Row 28’ Pro Boom w/QJD
PX413 13’ Manual Fold Boom w/QJD
PX416 16’ Manual Fold Boom w/QJD
PX420 20’ Manual Fold Boom w/QJD
PX423 23’ Manual Fold Boom w/QJD
PX Boom Electric Fold Kit w/Control Box & 18’ Harness (*Add To Above PX Boom)
Boomless 34’ Coverage, 3.8 GPM At 40 PSI (3 Section)
Boomless 38’ Coverage, 5.8 GPM At 40 PSI (3 Section)

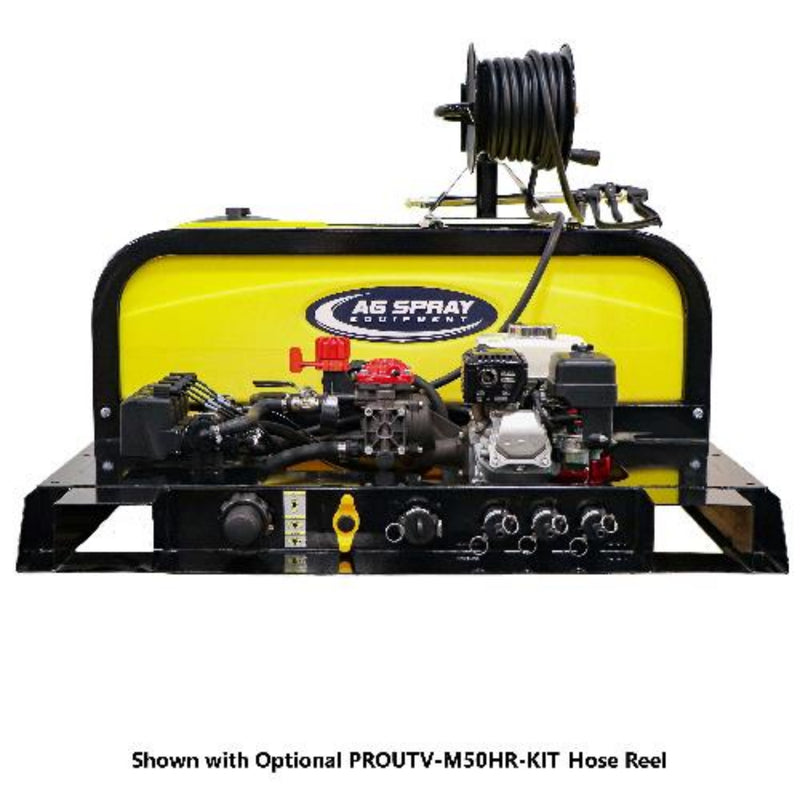

An optional 50 feet hose reel (PROUTV-M50HR-KIT) with 180 degree swivel base can easily be added to any PROUTV Series Sprayer

SPECIFICATIONS

Gallons Product Type
65 ATV / Utility Sprayers



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The 5303229 PROUTV Series Gas Engine configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it's utility, municipality, rangeland or ag. The gas engine version is designed for the tailgate to be open on most models of UTV. The 12 volt cab mounted electric controls allow the operator adjust the pressure and turn the boom sections on/off from inside the cab.  The steel base has fork lift pockets incorporated for convenient installation and removal.  The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out.  Equipped with a GX160 Honda engine coupled to a 252 Diaphragm Pump to provide reliable pressure that delivers plenty of volume and is rated up to 6.1 GPM and a max of 290 PSI.  The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose.   Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.

FEATURES
  • Fully drainable tank with molded in outlet fitting, no lip in the tank to hold back product
  • Tank baffle to limit sloshing for better handling
  • Lid gasket to prevent liquid leaking when going over rough terrain
  • Heavy skid with Fork Lift pockets for easy installation/removal
  • 12 threaded inserts in each tube for additional accessory mounting
  • Electric 12V controls for in-cab pressure and 3 section on/off control
  • Boom options of traditional or boomless in 3 sections
  • Shutoff valve on handgun hose inlet
    • Prevents the hose from being charged with chemical until you want to use it
    • Eliminates the need to flush the handgun line when switching chemicals when you didn’t charge the line and use the handgun
    • Prevents the handgun from being the shutoff and potentially leaking
  • Gas units designed for tailgate to be down with boom mounts attaching directly to the skid base, included
  • 4 Ratchet Strap tie down slots on under side of tank retention tubes for secure installation

BOOM MUST BE ORDERED SEPARATELY.

Spray boom options include –
6 Row 21’ Pro Boom w/QJD
8 Row 28’ Pro Boom w/QJD
PX413 13’ Manual Fold Boom w/QJD
PX416 16’ Manual Fold Boom w/QJD
PX420 20’ Manual Fold Boom w/QJD
PX423 23’ Manual Fold Boom w/QJD
PX Boom Electric Fold Kit w/Control Box & 18’ Harness (*Add To Above PX Boom)
Boomless 34’ Coverage, 3.8 GPM At 40 PSI (3 Section)
Boomless 38’ Coverage, 5.8 GPM At 40 PSI (3 Section)

An optional 50 feet hose reel (PROUTV-M50HR-KIT) with 180 degree swivel base can easily be added to any PROUTV Series Sprayer

SPECIFICATIONS
Gallons Product Type
65 ATV / Utility Sprayers



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
