Ag Spray MX4 Boom, 8 Nozzle, 1 Or 3-Way

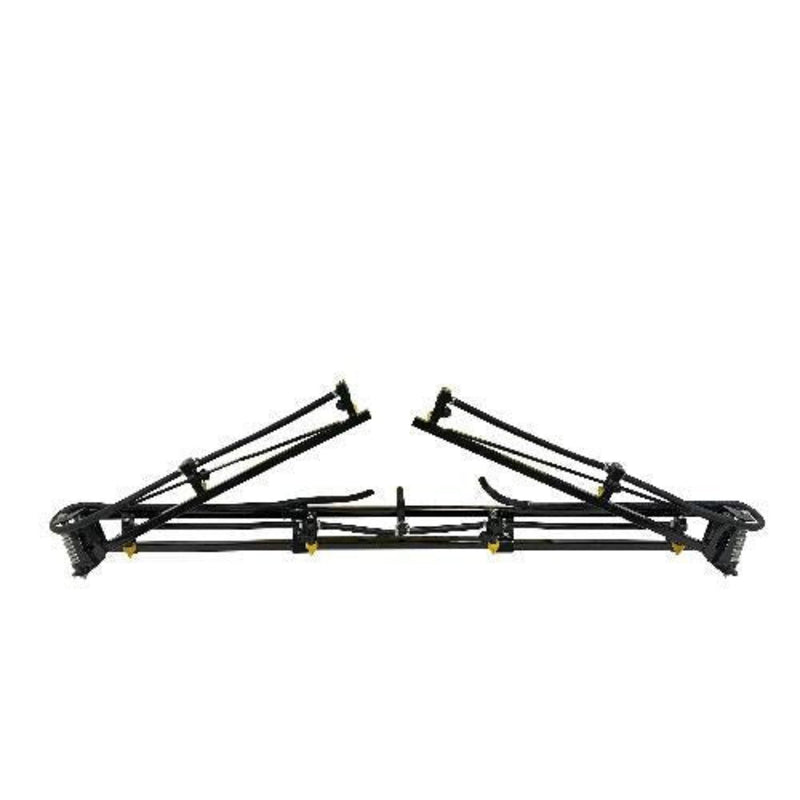

The 5303666 MX408 boom folds easily for transport and storage.  With 13' of spray coverage, this light weight 40 pound boom can be retro-fit to many sprayers.  The diaphragm quickjet nozzle body mounting brackets are integrated into the boom design which protect and elevate the nozzle preventing damage if the boom were to strike an object or the ground. The cam wing hinge design allows the boom to be folded easily and act as self-returning breakaway if the wing were to come in contact with an object.  Boom ships with plumbing components for single section or 3 section control.  Outfitted with a set of AIXR11003VP nozzles these air induction tips provide good drift control while still providing coverage.  Boom is available in 10 nozzle 200" coverage and 12 nozzle 240" coverage as well.

FEATURES

• Compact 13-Foot Coverage
  An ideal balance of width and portability, suited to tight spaces and agile operations.

• Lightweight & Easy to Retrofit
  Weighing approximately 40 lbs, it can be added to existing sprayer setups with minimal effort.

• Flexible Section Control
  Includes plumbing for operation as either a single-section or three-section boom, offering adaptable spray patterns for varying tasks.

• Space-Saving Folding Design
  The boom folds easily for compact storage and streamlined transport.

• Durable QuickJet Nozzles
  Built with tough, reliable QuickJet nozzle bodies, consistent with the rest of the MX4 family.

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
