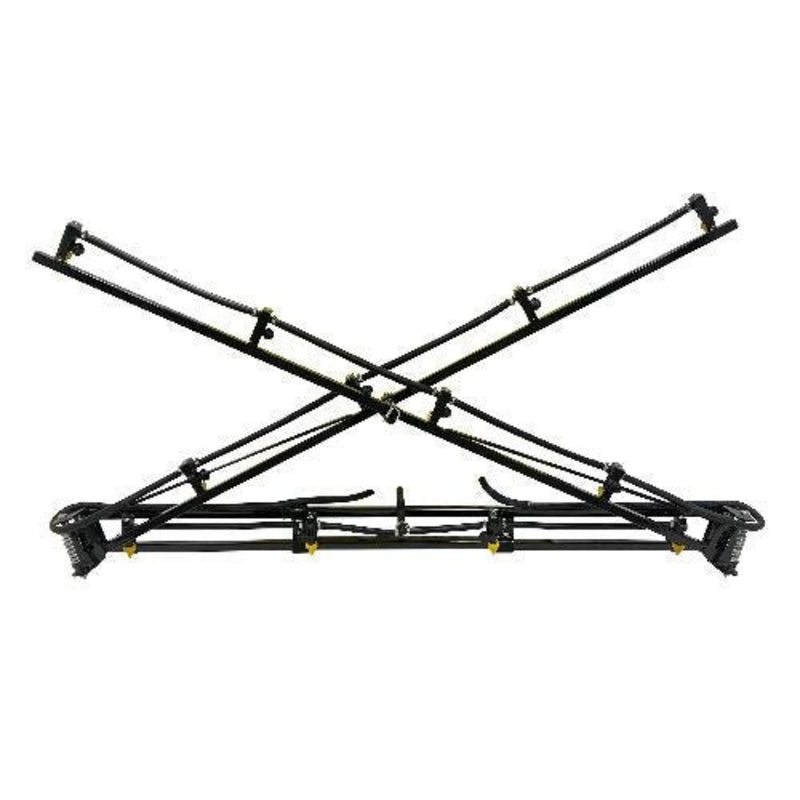

Ag Spray MX4 Boom, 12 Nozzle, Single Or 3 Section - Graneer

Ag Spray MX4 Boom, 12 Nozzle, Single Or 3 Section

Manufacturer: Ag Spray Equipment
Model #
$990.00 - $990.00
$990.00
$990.00 - $990.00
$990.00
Availability:
In stock
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





The 5303668 MX12 boom folds easily for transport and storage.  With 20' of spray coverage, this light weight 50 pound boom can be retro-fit to many sprayers.  The diaphragm quickjet nozzle body mounting brackets are integrated into the boom design which protect and elevate the nozzle preventing damage if the boom were to strike an object or the ground. The cam wing hinge design allows the boom to be folded easily and act as self-returning breakaway if the wing were to come in contact with an object.  Boom ships with plumbing components for single section or 3 section control.  Outfitted with a set of AIXR11003VP nozzles these air induction tips provide good drift control while still providing coverage.  Boom is available in 10 nozzle 200" coverage and 8 nozzle 160" coverage as well.

FEATURES

  • Broad 20' Coverage with Structural Strength
    The 50 lb boom provides efficient and dependable coverage, suitable for a variety of sprayer setups.
  • Low-Profile, Protected Nozzle Design
    Nozzle body brackets are integrated and elevated within the structure—shielding quickjet diaphragm nozzle bodies from ground strikes and potential damage.
  • Safe & Smooth Folding Mechanism
    The cam wing hinge allows effortless folding and includes a self-returning breakaway feature if the wing encounters an obstacle—protecting both equipment and terrain.
  • Configurable Spray Control
    Ships with plumbing for either single-section or three-section control, giving you flexibility in spray patterns and precision.
  • AIXR11003VP Air Induction Tips for Drift Control
    Equipped with air induction flat-fan nozzles that reduce drift while maintaining full coverage.
  • Multiple Nozzle Configurations Available
    In addition to this 12-nozzle, 20' configuration, the MX4 Boom is offered in 10-nozzle (200") and 8-nozzle (160") variants for tighter or lighter applications.

SPECIFICATIONS

Specification Details
Model / Codes MX4 Boom (MX412-QJD, Item #5303668)
Coverage Width 20 feet
Weight ~50 lbs
Nozzle Body Type QuickJet diaphragm with integrated brackets
Hinge Type Cam wing hinge with self-returning breakaway
Spray Control Options Single-section or 3-section (plumbing included)
Nozzle Tips AIXR11003VP (Air Induction)
Alternate Sizes 10-nozzle (200″), 8-nozzle (160″)



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The 5303668 MX12 boom folds easily for transport and storage.  With 20' of spray coverage, this light weight 50 pound boom can be retro-fit to many sprayers.  The diaphragm quickjet nozzle body mounting brackets are integrated into the boom design which protect and elevate the nozzle preventing damage if the boom were to strike an object or the ground. The cam wing hinge design allows the boom to be folded easily and act as self-returning breakaway if the wing were to come in contact with an object.  Boom ships with plumbing components for single section or 3 section control.  Outfitted with a set of AIXR11003VP nozzles these air induction tips provide good drift control while still providing coverage.  Boom is available in 10 nozzle 200" coverage and 8 nozzle 160" coverage as well.

FEATURES
  • Broad 20' Coverage with Structural Strength
    The 50 lb boom provides efficient and dependable coverage, suitable for a variety of sprayer setups.
  • Low-Profile, Protected Nozzle Design
    Nozzle body brackets are integrated and elevated within the structure—shielding quickjet diaphragm nozzle bodies from ground strikes and potential damage.
  • Safe & Smooth Folding Mechanism
    The cam wing hinge allows effortless folding and includes a self-returning breakaway feature if the wing encounters an obstacle—protecting both equipment and terrain.
  • Configurable Spray Control
    Ships with plumbing for either single-section or three-section control, giving you flexibility in spray patterns and precision.
  • AIXR11003VP Air Induction Tips for Drift Control
    Equipped with air induction flat-fan nozzles that reduce drift while maintaining full coverage.
  • Multiple Nozzle Configurations Available
    In addition to this 12-nozzle, 20' configuration, the MX4 Boom is offered in 10-nozzle (200") and 8-nozzle (160") variants for tighter or lighter applications.
SPECIFICATIONS
Specification Details
Model / Codes MX4 Boom (MX412-QJD, Item #5303668)
Coverage Width 20 feet
Weight ~50 lbs
Nozzle Body Type QuickJet diaphragm with integrated brackets
Hinge Type Cam wing hinge with self-returning breakaway
Spray Control Options Single-section or 3-section (plumbing included)
Nozzle Tips AIXR11003VP (Air Induction)
Alternate Sizes 10-nozzle (200″), 8-nozzle (160″)



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
