Ag Spray MX4 Boom, 10 Nozzle, 1 Or 3 - Way - Graneer

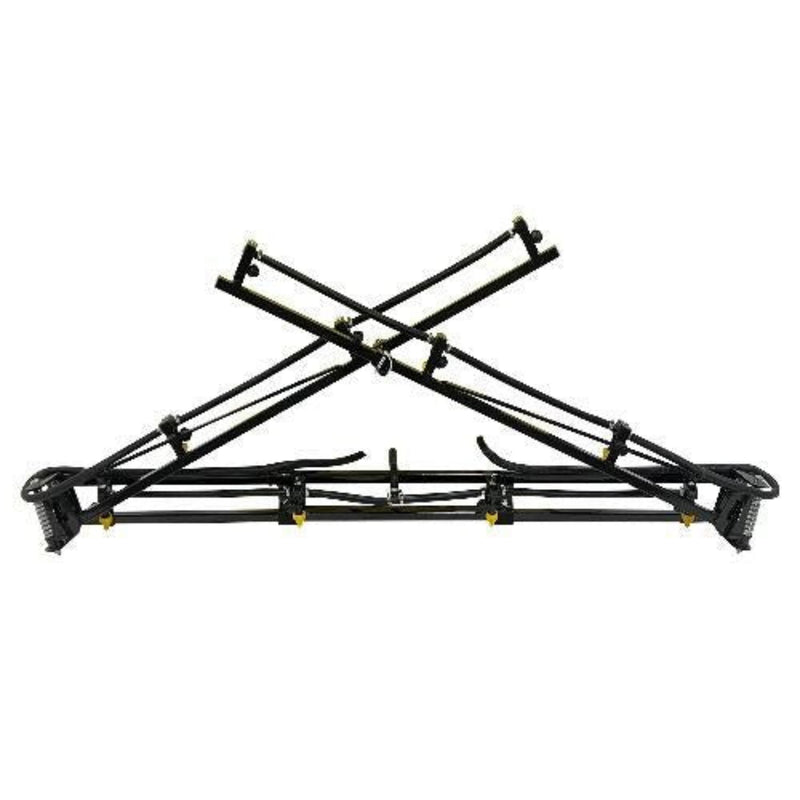

Ag Spray MX4 Boom, 10 Nozzle, 1 Or 3-Way

Manufacturer: Ag Spray Equipment
Model #
Sold out
$990.00 - $1,080.00
$990.00
$990.00 - $1,080.00
$990.00

DELIVERY TIME

Order today for delivery in 7-10 business days. Shipping calculated at checkout.
Request a quote





The 5303667 MX410 boom folds easily for transport and storage.  With 16' of spray coverage, this light weight 45 pound boom can be retro-fit to many sprayers.  The diaphragm quickjet nozzle body mounting brackets are integrated into the boom design which protect and elevate the nozzle preventing damage if the boom were to strike an object or the ground. The cam wing hinge design allows the boom to be folded easily and act as self-returning breakaway if the wing were to come in contact with an object.  Boom ships with plumbing components for single section or 3 section control.  Outfitted with a set of AIXR11003VP nozzles these air induction tips provide good drift control while still providing coverage.  Boom is available in 12 nozzle 240" coverage and 8 nozzle 160" coverage as well.

FEATURES

  • Generous 16' Spray Coverage
    Maximizes field coverage while remaining compact for easier handling and transport.
  • Lightweight & Adaptable
    Weighing roughly 45 lbs, this boom can be effortlessly fitted to a range of existing sprayer platforms.
  • Protective Nozzle Mounting
    QuickJet diaphragm nozzle bodies are safely tucked in integrated brackets, helping guard nozzles from ground contact and damage.
  • Cam Wing Hinge with Breakaway Action
    The boom uses a cam wing hinge that folds smoothly and incorporates a self-returning breakaway feature in case of accidental contact.
  • Flexible Section Control
    Includes plumbing components enabling either single-section or 3-section control—poised for diverse spraying regimes.
  • Drift-Reducing AIXR Nozzle Tips
    Equipped with AIXR11003VP air-induction tips for better drift management while maintaining effective spray coverage.
  • Series Consistency
    This boom is part of Ag Spray’s MX4 lineup, available in other variants such as the MX408-QJD (8-nozzle, 13′) and MX412-QJD (12-nozzle, 20′), enabling consistent modular options for different coverage needs.

SPECIFICATIONS

Specification Details
Model / Item Number MX410-QJD / 5303667
Coverage Width 16 feet
Weight ~45 lbs
Fold Mechanism Manual cam wing hinge with breakaway
Nozzle Protection Integrated QuickJet mounting brackets
Section Control Single-section or 3-section plumbing
Nozzle Tip Type AIXR11003VP air-induction tips
Series MX4 Series (8-, 10-, and 12-nozzle options)



SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
