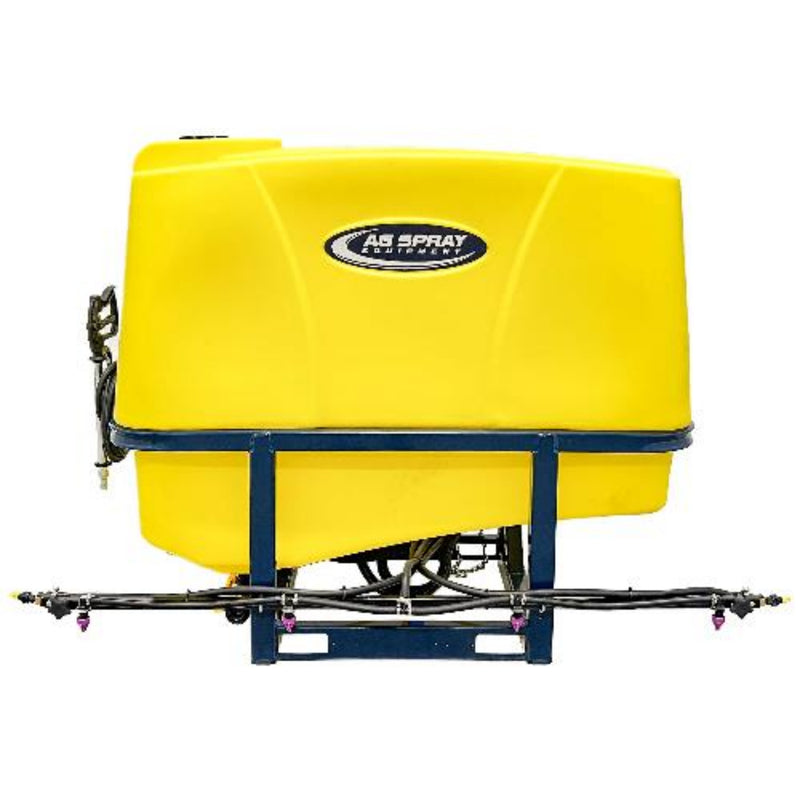

Ag Spray MC225 3PT /BXT3858, PRO22 Spraygun & RP-800 Pump

The AG SPRAY 5303661-BLU 225 Gallon MC 2 SERIES 3-POINT Sprayer maximizes your tractor's carrying capacity and comes ready to go to the field. The heavy duty MC225BXT3858-22PS-BLU 3 point sprayer is designed to be CAT 2 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 8-roller PTO pump has a combination quick coupler for standard 540 6-spline or 1000 21-spline to easily connect to the tractor PTO shaft. The BXT3858 Series Boom covers up to 38' with combination traditional 4 AIXR nozzle center section and adjustable angle Left and Right Boom X-Tender nozzles designed to reduce drift and promote spray penetration. This 3 section configuration eliminates the wear and tear of a traditional boom, while still allowing the operator to cover a wide swath. Three section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray 16’ left, 16’ right or 6' center section or any combination to the full 38’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22" Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 225 Gallon MC 2 Series Sprayer with more capacity, greater stability and better performance on all terrains.

FEATURES

• 225‑Gallon Close‑Coupled Tank
  Keeps the load near the tractor for improved balance and higher carrying capacity.
• CAT 2 Hitch Compatibility
  Simple and secure 3-point mounting offers quick on/off setup and reliable stability.
• RP‑800 8‑Roller PTO Pump with Quick Coupler
  Durable and efficient — includes a combination coupler compatible with standard 540‑6‑spline and 1000‑21‑spline PTO shafts for easy connectivity.
• BXT3858 Boom (Up to 38′ Coverage)
  Innovative design combines a traditional AIXR 4-nozzle center section with adjustable-angle X-Tender nozzles on each wing. This reduces drift and increases penetration while lowering wear compared to standard booms.
• Three-Section In-Cab Control
  Conveniently placed levers enable spraying of the left 16′, right 16′, and center 6′—or any combination—for full 38′ coverage—all from the comfort of your tractor seat.
• PRO 22″ Spray Gun with 25‑Ft Hose
  Ideal for spot or fence-line spraying—usable from the seat or while walking behind for added flexibility.
• Engineered for Stability and Performance
  This model delivers higher capacity, smoother weight distribution, and reliable performance across varying terrains and tasks.

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
