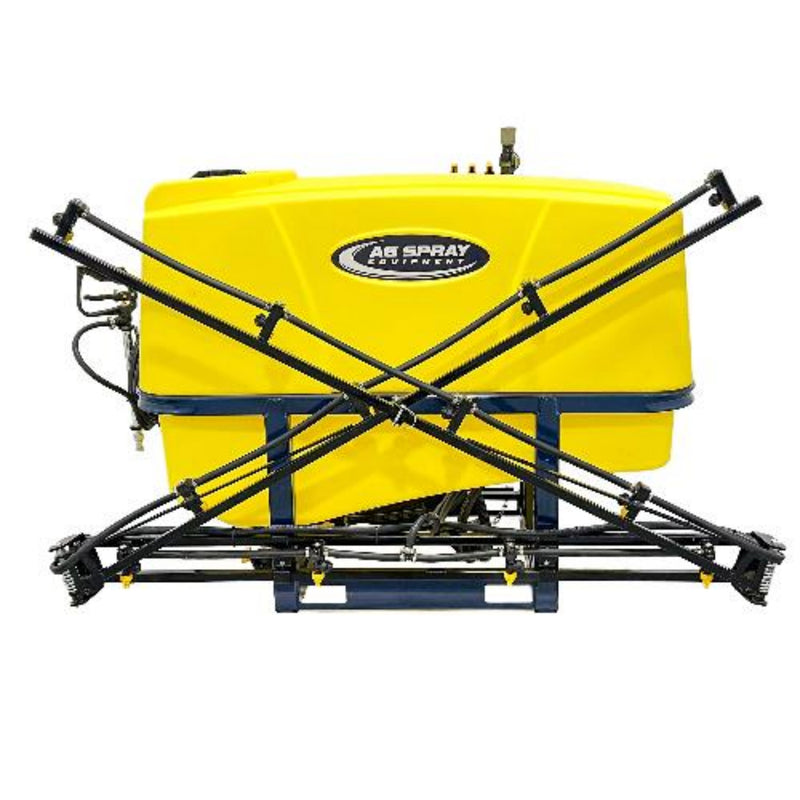

Ag Spray MC165 3PT W/MX12N, PRO22 Spraygun & RP - 800 Pump - Graneer

Ag Spray MC165 3PT W/MX12N, PRO22 Spraygun & RP-800 Pump

Manufacturer: Ag Spray Equipment
Model # 5303690-BLU
$4,806.00 - $4,806.00
$4,806.00
$4,806.00 - $4,806.00
$4,806.00
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





The AG SPRAY 5303690-BLU 165 Gallon MC 2 SERIES 3-POINT Sprayer maximizes your tractor's carrying capacity and comes ready to go to the field. The heavy duty MC165MX12N-22PS-BLU 3 point sprayer is designed to be CAT 2 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 8-roller PTO pump has a combination quick coupler for standard 540 6-spline or 1000 21-spline to easily connect to the tractor PTO shaft. The MX Series Boom covers up to 20' with 12 AIXR Air Induction nozzles designed to reduce drift and promote spray penetration. This 12 nozzle boom allows the operator to cover a wide swath that is spring loaded for easy deployment, use and storage. Three section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray left wing, center section or right wing or any combination up to the full 20’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22" Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 165 Gallon MC 2 Series Sprayer with more capacity, greater stability and better performance on all terrains.

FEATURES

  • 165‑gallon close‑coupled poly tank — keeps the fluid load near the tractor for improved handling and capacity.
  • MX Series 12‑nozzle boom — spans up to 20 feet, designed with AIXR Air Induction nozzles for reduced drift and enhanced spray penetration; spring‑loaded for easy unfolding and storage.
  • Three‑section in‑cab control panel — allows quick manipulation of left wing, center section, right wing, or any combination directly from the tractor seat.
  • PRO22 spray gun — ideal for spot or fence-line applications, comes with a generous 25 ft hose for flexible reach.
  • RP‑800 8‑roller PTO pump — features a quick coupler system compatible with both 540 (6‑spline) and 1000 (21‑spline) shafts for fast and reliable PTO connection.
  • CAT II mount system — designed for durability and stability, carried on a powder-coated steel frame.

SPECIFICATIONS

Frame Color Gallons Product Type Series Tank Color
Blue 165 3 Point Sprayer MC 2 3-POINT Yellow



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The AG SPRAY 5303690-BLU 165 Gallon MC 2 SERIES 3-POINT Sprayer maximizes your tractor's carrying capacity and comes ready to go to the field. The heavy duty MC165MX12N-22PS-BLU 3 point sprayer is designed to be CAT 2 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 8-roller PTO pump has a combination quick coupler for standard 540 6-spline or 1000 21-spline to easily connect to the tractor PTO shaft. The MX Series Boom covers up to 20' with 12 AIXR Air Induction nozzles designed to reduce drift and promote spray penetration. This 12 nozzle boom allows the operator to cover a wide swath that is spring loaded for easy deployment, use and storage. Three section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray left wing, center section or right wing or any combination up to the full 20’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22" Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 165 Gallon MC 2 Series Sprayer with more capacity, greater stability and better performance on all terrains.

FEATURES
  • 165‑gallon close‑coupled poly tank — keeps the fluid load near the tractor for improved handling and capacity.
  • MX Series 12‑nozzle boom — spans up to 20 feet, designed with AIXR Air Induction nozzles for reduced drift and enhanced spray penetration; spring‑loaded for easy unfolding and storage.
  • Three‑section in‑cab control panel — allows quick manipulation of left wing, center section, right wing, or any combination directly from the tractor seat.
  • PRO22 spray gun — ideal for spot or fence-line applications, comes with a generous 25 ft hose for flexible reach.
  • RP‑800 8‑roller PTO pump — features a quick coupler system compatible with both 540 (6‑spline) and 1000 (21‑spline) shafts for fast and reliable PTO connection.
  • CAT II mount system — designed for durability and stability, carried on a powder-coated steel frame.
SPECIFICATIONS
Frame Color Gallons Product Type Series Tank Color
Blue 165 3 Point Sprayer MC 2 3-POINT Yellow



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
