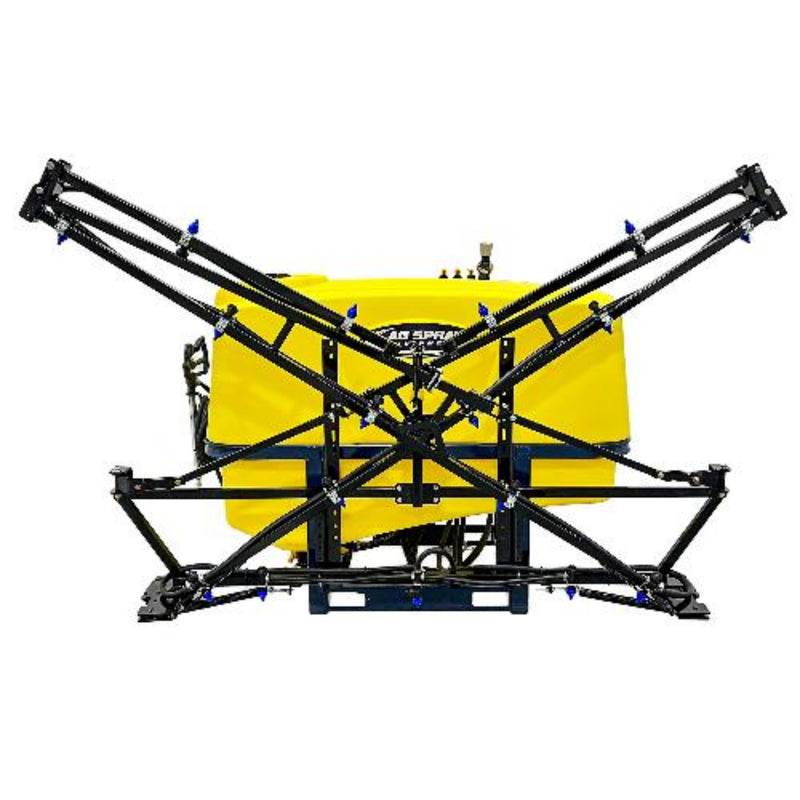

Ag Spray MC165 3PT /PRO8ROW, PRO22 Spraygun & RP-800 Pump

The AG SPRAY 5303659-BLU 165 Gallon MC 2 SERIES 3-POINT Sprayer maximizes your tractor's carrying capacity and comes ready to go to the field. The heavy duty MC165PRO8R-22PS-BLU 3 point sprayer is designed to be CAT 2 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 8-roller PTO pump has a combination quick coupler for standard 540 6-spline or 1000 21-spline to easily connect to the tractor PTO shaft. The 8 Row Pro Series 479 Boom covers up to 28' with AIXR QuickJet nozzles produce very coarse droplets to minimize drift without compromising spray coverage. This 17 nozzle boom allows the operator to cover a wide swath that is spring loaded for easy deployment, use and storage. Three section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray left wing, center section or right wing or any combination up to the full 28’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22" Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 165 Gallon MC 2 Series Sprayer with more capacity, greater stability and better performance on all terrains.

FEATURES

• 165-Gallon Capacity – Large yellow tank designed to sit close to the tractor for enhanced stability and weight distribution.
• CAT 2 Hitch Compatibility – Easy attachment to standard tractors, ensuring secure and efficient operation.
• RP‑800 PTO Pump (8‑roller) – Rugged and reliable pump featuring a combination quick coupler that supports both 540‑6‑spline and 1000‑21‑spline PTO shafts.
• PRO 8‑Row Pro Series 479 Boom – Extends up to 28 feet across the field and includes 17 nozzles equipped with AIXR QuickJet technology. These produce coarse droplets to significantly reduce drift while maintaining excellent spray coverage.
• Spring-Loaded Boom Design – Enables smooth and fast deployment, usage, and storage, ideal for efficiency in daily operations.
• Three-Section In-Cab Control – Conveniently located controls allow the operator to selectively spray the left wing, center section, right wing, or any combination thereof—up to the full 28-foot span—from the tractor seat.
• PRO 22" Spray Gun with 25‑ft Hose – Easily accessible for spot or fence-line spraying, usable both from the seat or while walking behind for enhanced flexibility.
• Engineered for Stability and Versatility – Overall configuration prioritizes increased holding capacity, better stability, and dependable performance across varied terrain.

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
