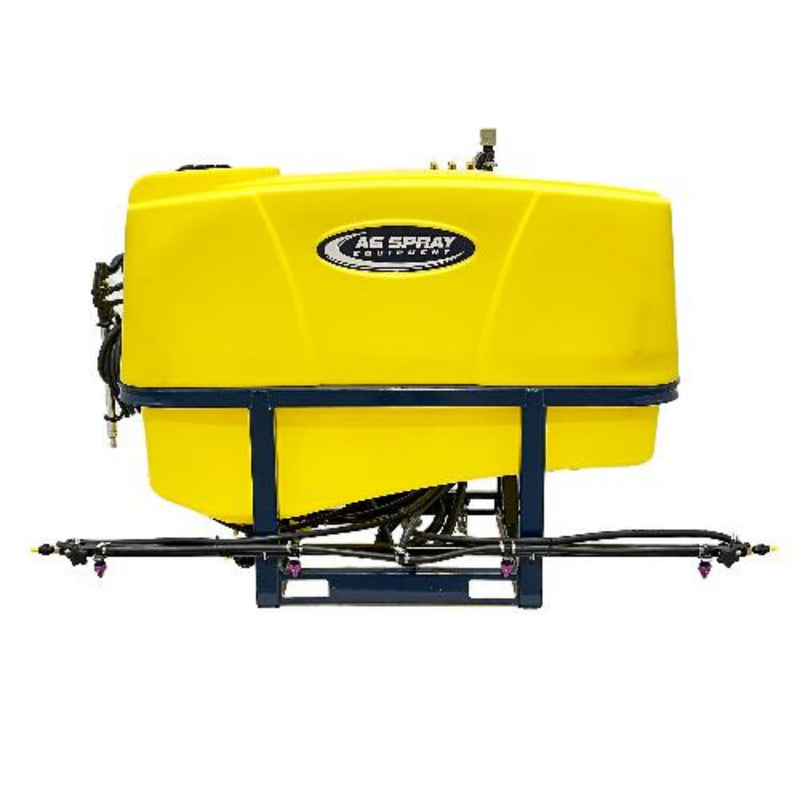

Ag Spray MC165 3PT /BXT3858, PRO22 Spraygun & RP-800 Pump

The AG SPRAY 5303656-BLU 165 Gallon MC 2 SERIES 3-POINT Sprayer maximizes your tractor's carrying capacity and comes ready to go to the field. The heavy duty MC165BXT3858-22PS-BLU 3 point sprayer is designed to be CAT 2 compatible while carrying the fluid load closer to the tractor allowing more capacity and greater stability. The 8-roller PTO pump has a combination quick coupler for standard 540 6-spline or 1000 21-spline to easily connect to the tractor PTO shaft. The BXT3858 Series Boom covers up to 38' with combination traditional 4 AIXR nozzle center section and adjustable angle Left and Right Boom X-Tender nozzles designed to reduce drift and promote spray penetration. This 3 section configuration eliminates the wear and tear of a traditional boom, while still allowing the operator to cover a wide swath.  Three section controls are conveniently placed making access easy from the tractor seat allowing the operator to spray 16’ left, 16’ right or 6' center section or any combination to the full 38’. Spot or fence line spraying can be done from the tractor seat or walking behind with the PRO 22" Spray Gun equipped with 25 Feet of hose. Meet all of your liquid application needs with the 165 Gallon MC 2 Series Sprayer with more capacity, greater stability and better performance on all terrains.

FEATURES

• 165‑gallon capacity: Yellow tank designed to sit close to tractor for superior balance and stability
• CAT 2 hitch compatibility: Ensures seamless integration with standard tractor connections
• RP‑800 PTO pump – 8‑roller: Robust pump design for reliable pressure and flow; includes quick‑coupler for both 540 and 1000 PTO shafts
• BXT3858 boom – 38' coverage: 3‑section boom featuring standard AIXR nozzle center and adjustable‑angle X‑Tender nozzles to reduce drift and boost penetration
• In‑cab section control: Effortlessly toggle among left (16'), center (6'), right (16') or any combination right from the seat
• Spot/fenceline flexibility: PRO 22″ handheld spray gun with 25′ hose enables close‑up work from tractor or on foot
• Heavy‑duty design: Built to maximize tractor capacity and remain field‑ready

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
