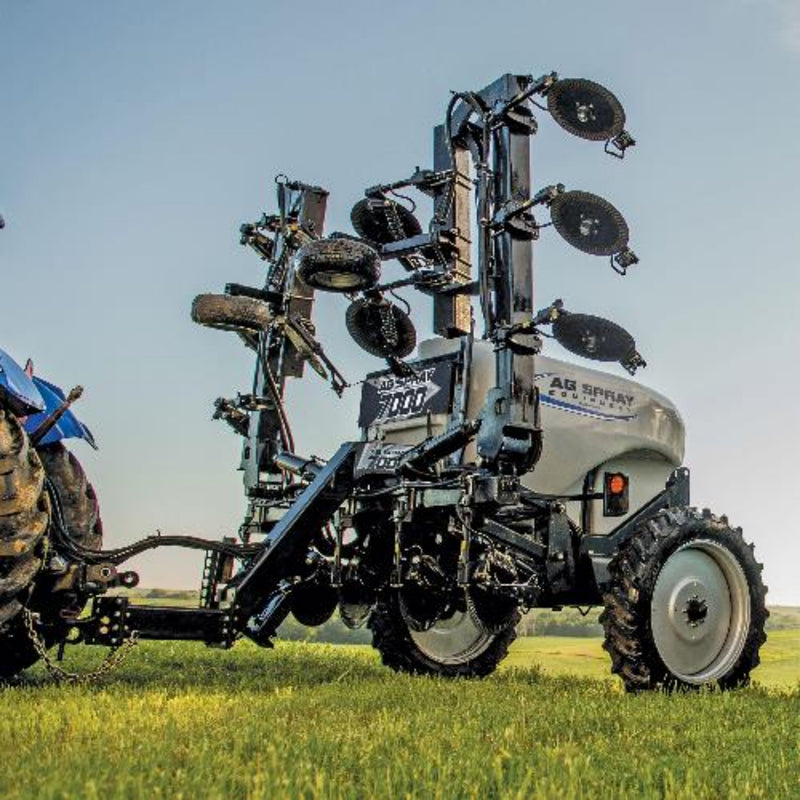

Ag Spray LA7000 35 - Foot Liquid Applicator - Graneer

Ag Spray LA7000 35-Foot Liquid Applicator

Manufacturer: Ag Spray Equipment
Model #
$50,000.00 - $58,000.00
$50,000.00
$50,000.00 - $58,000.00
$50,000.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





Ag Spray Equipment manufactures one of the best liquid applicators on the market. The LA7000 with 35 Foot heavy duty toolbar Unit features a 1350 Gallon Tank.  Available with additional toolbars ranging in size from 27' to 40'. Choose between a wheel drive piston pump or hydraulic drive centrifugal pump. The included auto gull wing feature comes standard on all Ag Spray applicators making turns at the end of fields easier. Standard tires of 320/90R46 on 10 bolt hubs to minimize compaction.  Adjustable constant wing down pressure for uniform coulter depth and fertilizer placement.  Apply pre-plant or side-dress fertilizer with confidence with a LA5000 Series Liquid Applicator.

FEATURES

  • 1350 Gallon Tank
  • 27’, 30’, 35’ Or 40’ Toolbar
  • Adjustable Constant Wing Down Pressure
  • Auto Gull Wing
  • 100% Tank Drainability In Nearly Every Terrain
  • Front Mount Toolbar For Superior Trailing
  • Wide Parallel Linkage For Better Stability
  • Heavy Duty 7 X 7 Toolbar
  • 35’ & 40’ Bars Fold To 27’ - 11 Coulters
  • Tool Bar Gauge Wheels Standard
  • 320/90R46 Tires
  • 10-Bolt Hubs Standard
  • Adjustable Axle Spacing On Single (60”-88”; 112”-152”) Or Dual
  • Option Available
  • Optional Wheel Drive Piston Or Hydraulic Drive Centrifugal Pump

SPECIFICATIONS

Specification Details
Tank Capacity 1,350 gallons
Toolbar Size Options 27′, 30′, 35′, or 40′ (35′ & 40′ fold to 27′, with 11 coulters)
Toolbar Construction Heavy-duty 7 × 7 front-mounted toolbar with wide parallel linkage
Auto Gull-Wing Feature Automatically tips wings 7° for increased turning clearance
Crop Clearance Raised clearance: 66″ plus 7° gull-wing tip; Lowered clearance: 34″
Tank Drainability 100% drainability in nearly any terrain
Field Control Features Adjustable constant wing-down pressure; front-mount toolbar for superior trailing
Gauge Wheels Toolbar gauge wheels included as standard
Wheels & Hubs 320/90R46 tires on 10-bolt hubs
Axle Configuration Single axle adjustable: 60″–88″ or 112″–152″; dual axle optional
Pump Options Wheel-drive piston pump or hydraulic-drive centrifugal pump available
Hitch & Transport Hitch-to-axle length: 162″; Hitch pin size: 1 ½″



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

Ag Spray Equipment manufactures one of the best liquid applicators on the market. The LA7000 with 35 Foot heavy duty toolbar Unit features a 1350 Gallon Tank.  Available with additional toolbars ranging in size from 27' to 40'. Choose between a wheel drive piston pump or hydraulic drive centrifugal pump. The included auto gull wing feature comes standard on all Ag Spray applicators making turns at the end of fields easier. Standard tires of 320/90R46 on 10 bolt hubs to minimize compaction.  Adjustable constant wing down pressure for uniform coulter depth and fertilizer placement.  Apply pre-plant or side-dress fertilizer with confidence with a LA5000 Series Liquid Applicator.

FEATURES
  • 1350 Gallon Tank
  • 27’, 30’, 35’ Or 40’ Toolbar
  • Adjustable Constant Wing Down Pressure
  • Auto Gull Wing
  • 100% Tank Drainability In Nearly Every Terrain
  • Front Mount Toolbar For Superior Trailing
  • Wide Parallel Linkage For Better Stability
  • Heavy Duty 7 X 7 Toolbar
  • 35’ & 40’ Bars Fold To 27’ - 11 Coulters
  • Tool Bar Gauge Wheels Standard
  • 320/90R46 Tires
  • 10-Bolt Hubs Standard
  • Adjustable Axle Spacing On Single (60”-88”; 112”-152”) Or Dual
  • Option Available
  • Optional Wheel Drive Piston Or Hydraulic Drive Centrifugal Pump
SPECIFICATIONS
Specification Details
Tank Capacity 1,350 gallons
Toolbar Size Options 27′, 30′, 35′, or 40′ (35′ & 40′ fold to 27′, with 11 coulters)
Toolbar Construction Heavy-duty 7 × 7 front-mounted toolbar with wide parallel linkage
Auto Gull-Wing Feature Automatically tips wings 7° for increased turning clearance
Crop Clearance Raised clearance: 66″ plus 7° gull-wing tip; Lowered clearance: 34″
Tank Drainability 100% drainability in nearly any terrain
Field Control Features Adjustable constant wing-down pressure; front-mount toolbar for superior trailing
Gauge Wheels Toolbar gauge wheels included as standard
Wheels & Hubs 320/90R46 tires on 10-bolt hubs
Axle Configuration Single axle adjustable: 60″–88″ or 112″–152″; dual axle optional
Pump Options Wheel-drive piston pump or hydraulic-drive centrifugal pump available
Hitch & Transport Hitch-to-axle length: 162″; Hitch pin size: 1 ½″



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
