Ag Spray LA5000 35FT Unit Liquid Applicator - Graneer

Ag Spray LA5000 35FT Unit Liquid Applicator

Manufacturer: Ag Spray Equipment
Model #
$42,000.00 - $52,000.00
$42,000.00
$42,000.00 - $52,000.00
$42,000.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote

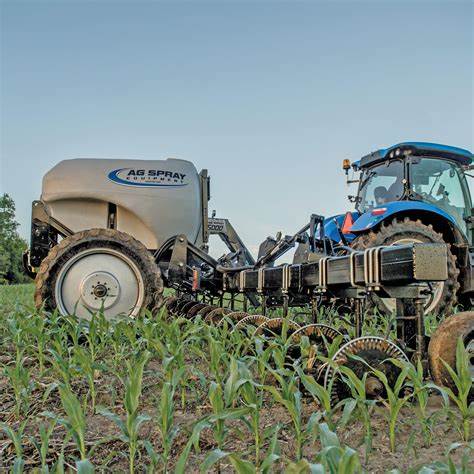

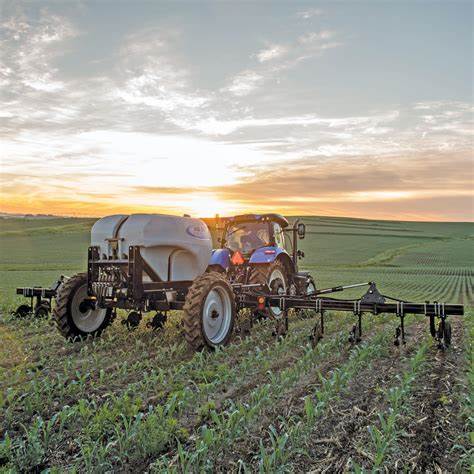

Ag Spray Equipment manufactures one of the best liquid applicators on the market. The LA5000 with 35 Foot heavy duty toolbar Unit features a 1050 Gallon Tank.  Available with additional toolbars ranging in size from 27' to 40'. Choose between a wheel drive piston pump or hydraulic drive centrifugal pump. The included auto gull wing feature comes standard on all Ag Spray applicators making turns at the end of fields easier. Standard tires of 320/85R38 on 8 bolt hubs to minimize compaction.  Adjustable constant wing down pressure for uniform coulter depth and fertilizer placement.  Apply pre-plant or side-dress fertilizer with confidence with a LA5000 Series Liquid Applicator.

FEATURES

  • 1050 Gallon Tank
  • 27’, 30’, 35’ Or 40’ Toolbar

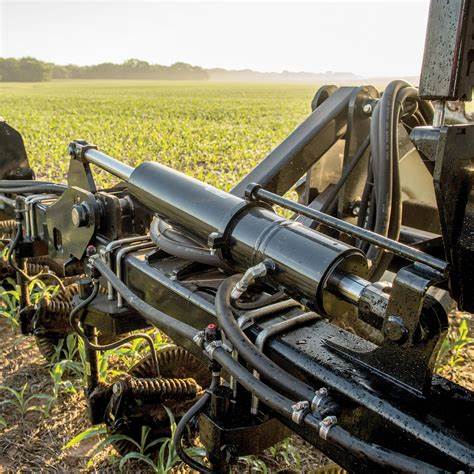

  • Adjustable Constant Wing Down Pressure
  • Auto Gull Wing
  • 100% Tank Drainability In Nearly Every Terrain
  • Front Mount Toolbar For Superior Trailing
  • Wide Parallel Linkage For Better Stability
  • Heavy Duty 7 X 7 Toolbar

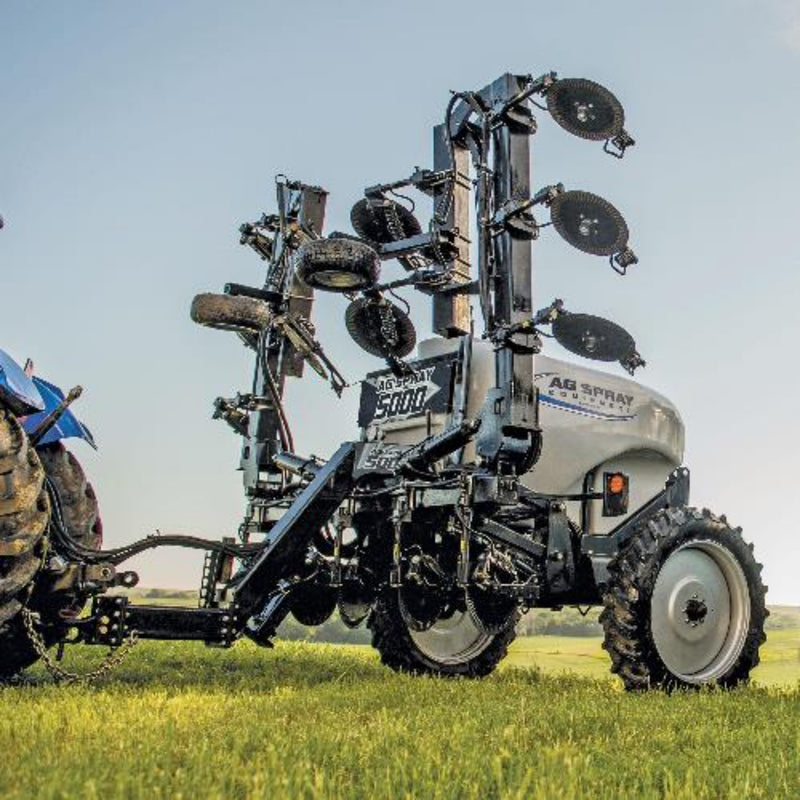

  • 35’ & 40’ Bars Fold To 27’ - 11 Coulters
  • Tool Bar Gauge Wheels Standard
  • 320/85R38 Tires
  • 8-Bolt Hubs Standard
  • Adjustable Axle Spacing On Single (62”-88”; 112”-152”)
  • Optional Wheel Drive Piston Or Hydraulic Drive Centrifugal Pump

SPECIFICATIONS

Specification Details (Applies to All Toolbar Sizes)
Toolbar Length Options Available in 27′, 30′, 35′, or 40′
Tank Capacity 1,050-gallon tank
Toolbar Construction Heavy-duty 7 × 7 construction
Standard Features (All Sizes) - Auto Gull Wing



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

Ag Spray Equipment manufactures one of the best liquid applicators on the market. The LA5000 with 35 Foot heavy duty toolbar Unit features a 1050 Gallon Tank.  Available with additional toolbars ranging in size from 27' to 40'. Choose between a wheel drive piston pump or hydraulic drive centrifugal pump. The included auto gull wing feature comes standard on all Ag Spray applicators making turns at the end of fields easier. Standard tires of 320/85R38 on 8 bolt hubs to minimize compaction.  Adjustable constant wing down pressure for uniform coulter depth and fertilizer placement.  Apply pre-plant or side-dress fertilizer with confidence with a LA5000 Series Liquid Applicator.

FEATURES
  • 1050 Gallon Tank
  • 27’, 30’, 35’ Or 40’ Toolbar
  • Adjustable Constant Wing Down Pressure
  • Auto Gull Wing
  • 100% Tank Drainability In Nearly Every Terrain
  • Front Mount Toolbar For Superior Trailing
  • Wide Parallel Linkage For Better Stability
  • Heavy Duty 7 X 7 Toolbar
  • 35’ & 40’ Bars Fold To 27’ - 11 Coulters
  • Tool Bar Gauge Wheels Standard
  • 320/85R38 Tires
  • 8-Bolt Hubs Standard
  • Adjustable Axle Spacing On Single (62”-88”; 112”-152”)
  • Optional Wheel Drive Piston Or Hydraulic Drive Centrifugal Pump
SPECIFICATIONS
Specification Details (Applies to All Toolbar Sizes)
Toolbar Length Options Available in 27′, 30′, 35′, or 40′
Tank Capacity 1,050-gallon tank
Toolbar Construction Heavy-duty 7 × 7 construction
Standard Features (All Sizes) - Auto Gull Wing



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
