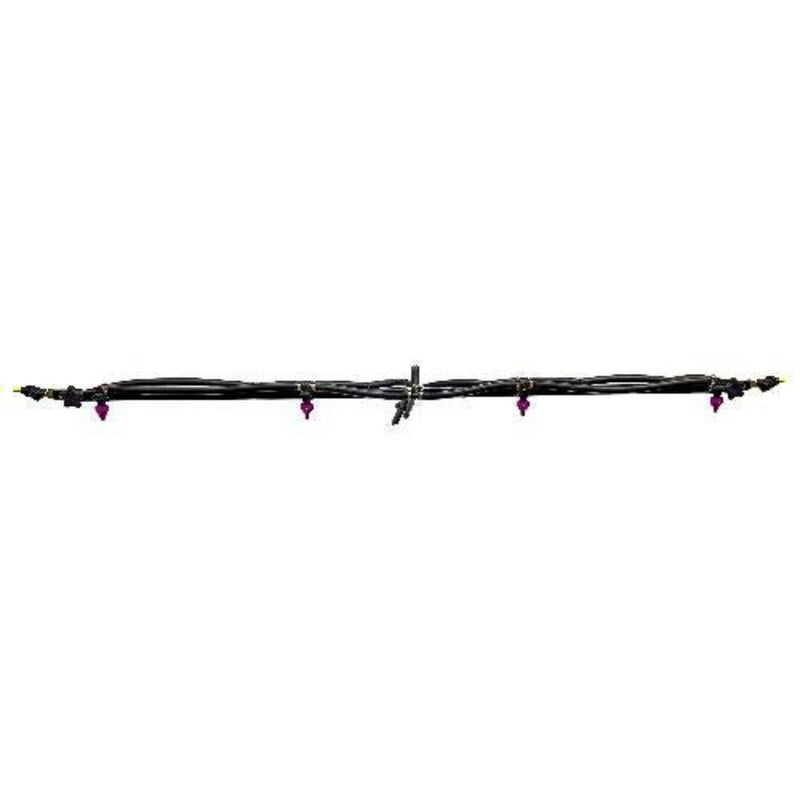

Ag Spray BXT3858, 3 - Section Boom Coverage 38' - Graneer

Ag Spray BXT3858, 3-Section Boom Coverage 38'

Manufacturer: Ag Spray Equipment
Model # 3858-BXT
$416.70 - $416.70
$416.70
$416.70 - $416.70
$416.70
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





The 5282451 Boom Extender BXT3858  is a very versatile boom with an 6 Feet traditional center section boom coverage and 16 Feet effective coverage Boom Extender Tip on each side that deliver up to 38 Feet of effective coverage in one pass.  The Boom Extender Tip (BXT) mounts are designed with adjustable swivel brackets that can be rotated 180 degrees to allow the operator to direct the spray coverage to desired spray target area.  A detent button on the BXT bracket acts as a locating stop at 5 degree above horizontal for optimized effective coverage, taking the guess work out of resetting the nozzles after targeted applications.  At 40 psi the BXT3858 has an effective coverage of 38 Feet and requires 5.8 gpm of product flow.  Utilize the entire boom for pasture, rangeland or spot spraying troubled areas or restrict the flow to left, center or right or any combination of sections for right-away, road sides or lane weed management.

FEATURES

  • 38-Foot Effective Coverage
    Includes a 6-foot traditional center section combined with 16-foot extender tips on each side for a total of up to 38 feet per pass.
  • Adjustable Boom Extender Tips
    Extender tip mounts feature swivel brackets that rotate 180°, allowing you to precisely direct spray where needed.
  • Detent Button for Consistent Positioning
    A built-in detent button locks the extender at 5° above horizontal, ensuring consistent spray height and coverage without manual measuring or guesswork.
  • Efficient Flow & Spray Control
    At 40 PSI, this system delivers 38 feet of coverage while requiring just 5.8 GPM of product flow, maximizing efficiency.
  • 3-Section Versatility
    Allows targeted spraying of left, center, or right sections (or any combination), perfect for fence lines, rangeland, or selective treatment areas.

SPECIFICATIONS

Specification Details
Model / Codes BXT3858 Boom Extender (Item #5282451)
Boom Type Boomless-style, 3-section extender
Coverage Width Up to 38 feet
Flow Requirement 5.8 GPM at 40 PSI
Tip Mounting Swiveling, with 5° detent positioning
Ideal For Pasture, roadside, rangeland, right-of-way



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The 5282451 Boom Extender BXT3858  is a very versatile boom with an 6 Feet traditional center section boom coverage and 16 Feet effective coverage Boom Extender Tip on each side that deliver up to 38 Feet of effective coverage in one pass.  The Boom Extender Tip (BXT) mounts are designed with adjustable swivel brackets that can be rotated 180 degrees to allow the operator to direct the spray coverage to desired spray target area.  A detent button on the BXT bracket acts as a locating stop at 5 degree above horizontal for optimized effective coverage, taking the guess work out of resetting the nozzles after targeted applications.  At 40 psi the BXT3858 has an effective coverage of 38 Feet and requires 5.8 gpm of product flow.  Utilize the entire boom for pasture, rangeland or spot spraying troubled areas or restrict the flow to left, center or right or any combination of sections for right-away, road sides or lane weed management.

FEATURES
  • 38-Foot Effective Coverage
    Includes a 6-foot traditional center section combined with 16-foot extender tips on each side for a total of up to 38 feet per pass.
  • Adjustable Boom Extender Tips
    Extender tip mounts feature swivel brackets that rotate 180°, allowing you to precisely direct spray where needed.
  • Detent Button for Consistent Positioning
    A built-in detent button locks the extender at 5° above horizontal, ensuring consistent spray height and coverage without manual measuring or guesswork.
  • Efficient Flow & Spray Control
    At 40 PSI, this system delivers 38 feet of coverage while requiring just 5.8 GPM of product flow, maximizing efficiency.
  • 3-Section Versatility
    Allows targeted spraying of left, center, or right sections (or any combination), perfect for fence lines, rangeland, or selective treatment areas.
SPECIFICATIONS
Specification Details
Model / Codes BXT3858 Boom Extender (Item #5282451)
Boom Type Boomless-style, 3-section extender
Coverage Width Up to 38 feet
Flow Requirement 5.8 GPM at 40 PSI
Tip Mounting Swiveling, with 5° detent positioning
Ideal For Pasture, roadside, rangeland, right-of-way



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
