Ag Spray 45 Gallon UTV Sprayer 4.0 GPM Deluxe Handgun Boom Separate - Graneer

Ag Spray 45 Gallon UTV Sprayer 4.0 GPM Deluxe Handgun Boom Separate

Manufacturer: Ag Spray Equipment
Model # FSUTV45-12V
$832.50 - $832.50
$832.50
$832.50 - $832.50
$832.50
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote

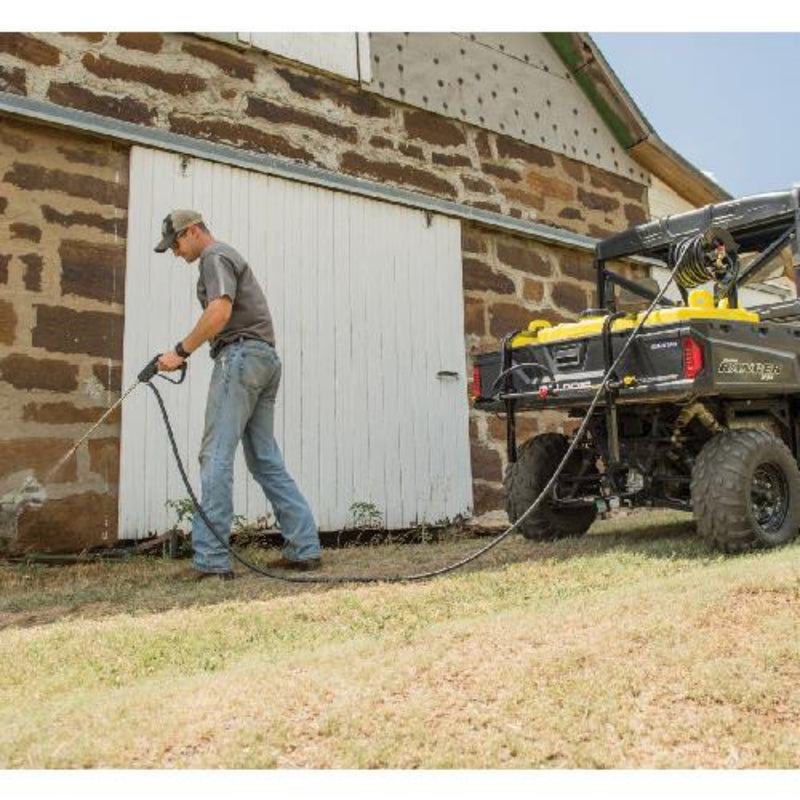

The Ag Spray 45 GALLON UTV SPRAYER with 12 VOLT PUMP and HANDGUN is specifically built for the bed of your UTV to quickly apply herbicides, pesticides, fertilizers and more. The conveniently positioned 12 Volt Shurflo Pump and manifold is connected near UTV cab to easily set sprayer PSI. Add a boom where a flow rate of up to 4.0 GPM and a max of 45 PSI is required. The durable tank has a molded in drain for easy clean-out and is equipped with a multi-lid to easily measure liquid product with the attached 32 ounce measuring cup that directly attaches to tank lid. The deluxe handgun with adjustable pattern tip distributes up to 35 feet of horizontal spray and up to 26 feet of vertical spray. The 25 feet of 3/8 inch hose provides greater reach and adds flexibilty while spraying.  Twisting the adjustable nozzle allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY UTV Sprayers will deliver dependable use when you need it most. The 45 gallon side by side sprayer allows accurate and easy application of lawn care products with the versatility and efficiency needed to spray tight areas, around buildings, fence lines, trees, bushes or other obstacles. This UTV sprayer is designed for controlling weeds, overgrown grass, insects and diseases on lawns, ball fields, parks, acreages, food plots, ditches, fence lines and pastures.

FEATURES

Heavy Duty Roto Molded 45 Gallon Polyethylene Tank

  • Low Profile For Improved Stability / Center Of Gravity
  • Molded Handles For Easy Installation In UTV’s
  • Conveniently Positioned Pump / Manifold Near UTV Cab To Easily Set Sprayer P.S.I.
  • 12 Volt ShurFlo Pump, 4.0 G.P.M.: 45 P.S.I. Max
  • Hose Wrap Holder With 25 Feet Of 3/8” Hose  - *(Hose Reel must be ordered separately)
  • New Multi-Lid Included
  • Can Be Used With UTV Tailgate Closed Or Open

BOOM MUST BE ORDERED SEPARATELY

OPTIONAL -UTV HAND CRANK HOSE REEL WITH 50' HOSE & SWIVEL BRACKET

Spray Boom Options

  • 3 Nozzle boomless boom with 30 feet of coverage
  • 2 Nozzle boom with 80 inch of coverage
  • 5 Nozzle folding boom with 100 inch of coverage
  • 7 Nozzle folding boom with 140 inch of coverage

SPECIFICATIONS

Specification Detail
Application Rate 4.0 GPM
Drive Type 12 VDC
Tank Capacity 45 Gallons
Pressure 0–45 PSI
Product Type ATV / Utility Sprayers
Tank Color Yellow
Voltage 12 VDC



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The Ag Spray 45 GALLON UTV SPRAYER with 12 VOLT PUMP and HANDGUN is specifically built for the bed of your UTV to quickly apply herbicides, pesticides, fertilizers and more. The conveniently positioned 12 Volt Shurflo Pump and manifold is connected near UTV cab to easily set sprayer PSI. Add a boom where a flow rate of up to 4.0 GPM and a max of 45 PSI is required. The durable tank has a molded in drain for easy clean-out and is equipped with a multi-lid to easily measure liquid product with the attached 32 ounce measuring cup that directly attaches to tank lid. The deluxe handgun with adjustable pattern tip distributes up to 35 feet of horizontal spray and up to 26 feet of vertical spray. The 25 feet of 3/8 inch hose provides greater reach and adds flexibilty while spraying.  Twisting the adjustable nozzle allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY UTV Sprayers will deliver dependable use when you need it most. The 45 gallon side by side sprayer allows accurate and easy application of lawn care products with the versatility and efficiency needed to spray tight areas, around buildings, fence lines, trees, bushes or other obstacles. This UTV sprayer is designed for controlling weeds, overgrown grass, insects and diseases on lawns, ball fields, parks, acreages, food plots, ditches, fence lines and pastures.

FEATURES

Heavy Duty Roto Molded 45 Gallon Polyethylene Tank

  • Low Profile For Improved Stability / Center Of Gravity
  • Molded Handles For Easy Installation In UTV’s
  • Conveniently Positioned Pump / Manifold Near UTV Cab To Easily Set Sprayer P.S.I.
  • 12 Volt ShurFlo Pump, 4.0 G.P.M.: 45 P.S.I. Max
  • Hose Wrap Holder With 25 Feet Of 3/8” Hose  - *(Hose Reel must be ordered separately)
  • New Multi-Lid Included
  • Can Be Used With UTV Tailgate Closed Or Open

BOOM MUST BE ORDERED SEPARATELY

OPTIONAL -UTV HAND CRANK HOSE REEL WITH 50' HOSE & SWIVEL BRACKET

Spray Boom Options

  • 3 Nozzle boomless boom with 30 feet of coverage
  • 2 Nozzle boom with 80 inch of coverage
  • 5 Nozzle folding boom with 100 inch of coverage
  • 7 Nozzle folding boom with 140 inch of coverage
SPECIFICATIONS
Specification Detail
Application Rate 4.0 GPM
Drive Type 12 VDC
Tank Capacity 45 Gallons
Pressure 0–45 PSI
Product Type ATV / Utility Sprayers
Tank Color Yellow
Voltage 12 VDC



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
