Ag Spray 8 Row 28' Boom W/17QJD - Pro Series - Graneer

Ag Spray 8 Row 28' Boom W/17QJD - Pro Series

Manufacturer: Ag Spray Equipment
Model # 479-8QJ
Sold out
$1,915.20 - $1,915.20
$1,915.20
$1,915.20 - $1,915.20
$1,915.20

DELIVERY TIME

Order today for delivery in 7-10 business days. Shipping calculated at checkout.
Request a quote

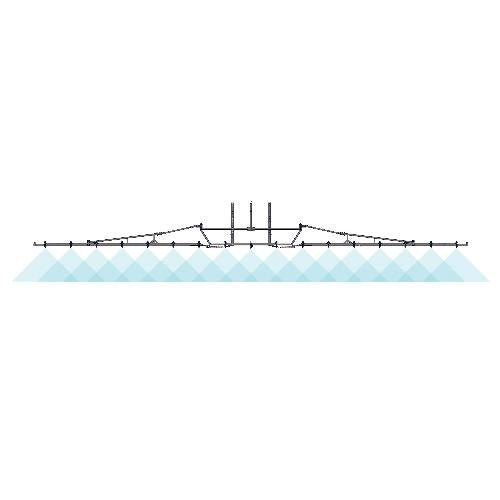

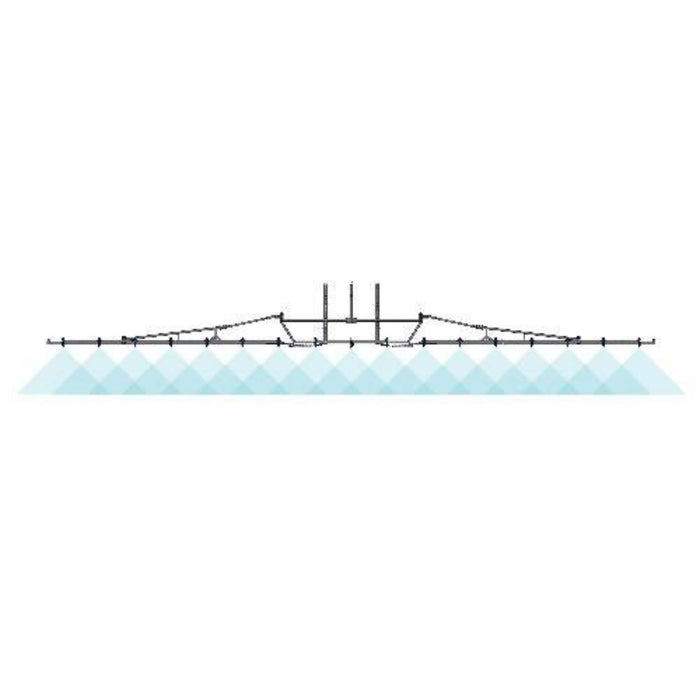

The 8 ROW 28' BOOM with 17 nozzle QUICKJET DIAPHRAGM PRO SERIES is a traditional boom with anti-drip nozzle bodies and AIXR11003VP tips. This 28' boom is a manual fold that swings around behind the center section in the shape of an X for storage. This manual fold boom with AIXR11003VP tips is ideal for a wide range of applications including post-emergent and other liquid chemical applications. TeeJet QuickJet Diaphragm nozzle bodies include check valve and provide a drip free shutoff. Other boom lengths available.

FEATURES

  • Wide & Efficient Coverage
    Delivers a total span of 28 feet, offering broad coverage with each pass.
  • Premium QuickJet Diaphragm Nozzle Bodies
    Equipped with anti-drip QuickJet diaphragms, including integrated check valves for a reliable, drip-free shut-off.
  • High-Performance AIXR11003VP Tips
    Includes high-quality Air Induction eXtended Range tips (AIXR11003VP) known for enhanced drift control and uniform spray.

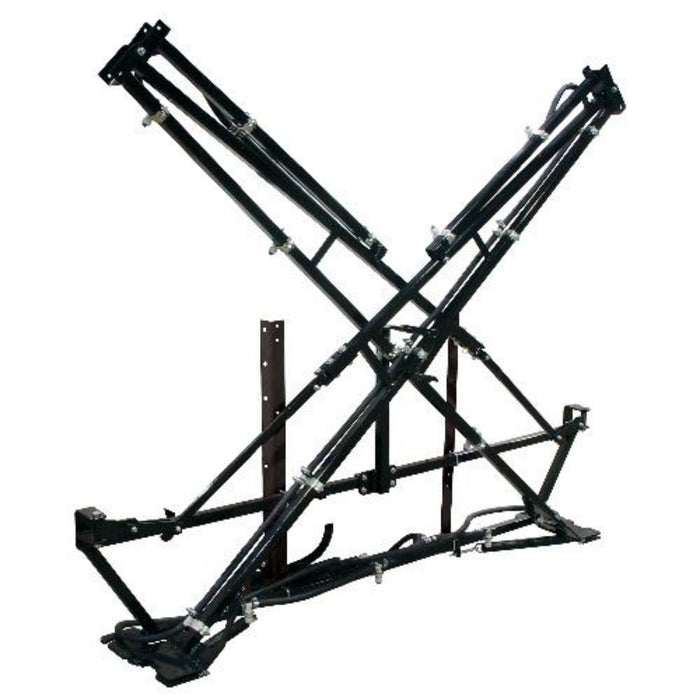

  • Manual Folding “X” Design
    Boom folds backward into an “X” formation for compact storage and transport—ideal for tight spaces and easy deployment.
  • Durable & Adjustable Construction
    Built with square boom tubing and equipped with 4-way hinges for flexibility and safe movement. Offers adjustable spacing, height settings, and fully compatible with most carriers.
  • Includes Springs & Hinge Protection
    Designed with protective spring connections and hinges to guard against wear and ensure long-term durability.

SPECIFICATIONS

Specification Details
Model Number 479-8QJ
Manufacturer Code 5301357
Boom Type Pro-Series Folding Boom (manual-fold, “X” style)
Number of Rows 8
Coverage Width 28 feet (approximate)
Number of Nozzles 17
Nozzle Type QuickJet diaphragm nozzles, anti-drip, with check valves
Tip Type AIXR series (Air Induction eXtended Range) — excellent drift control
Fold Mechanism Manual fold, swings into “X” shape for compact storage



SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
