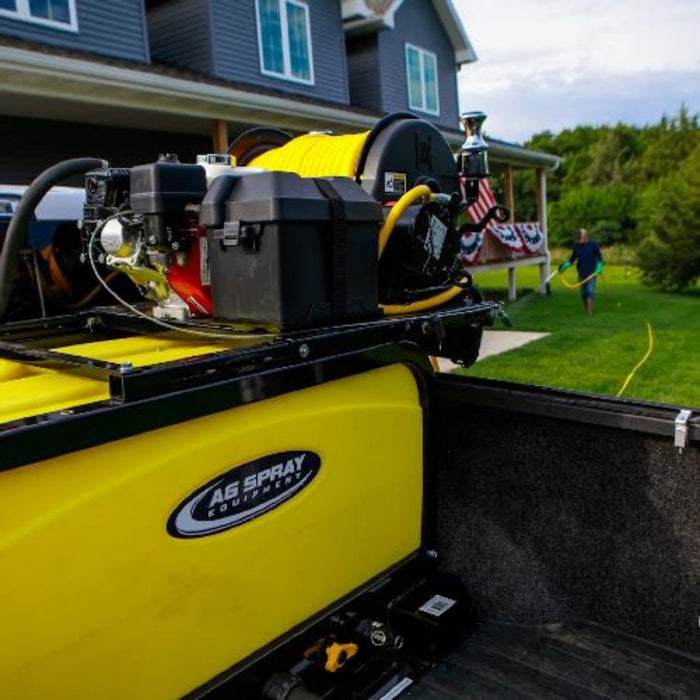

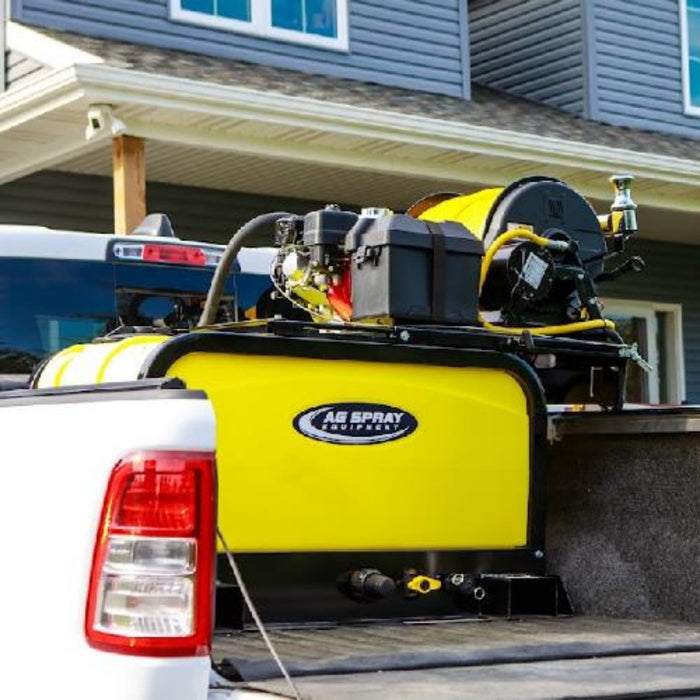

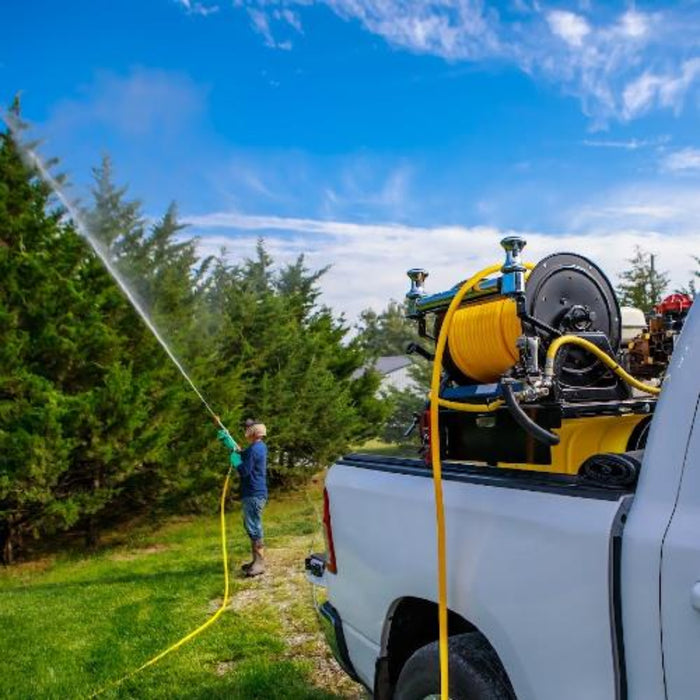

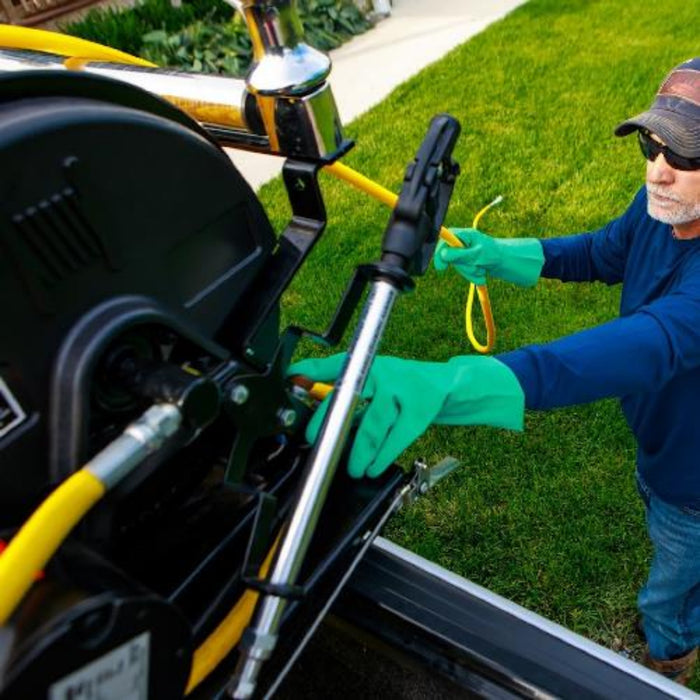

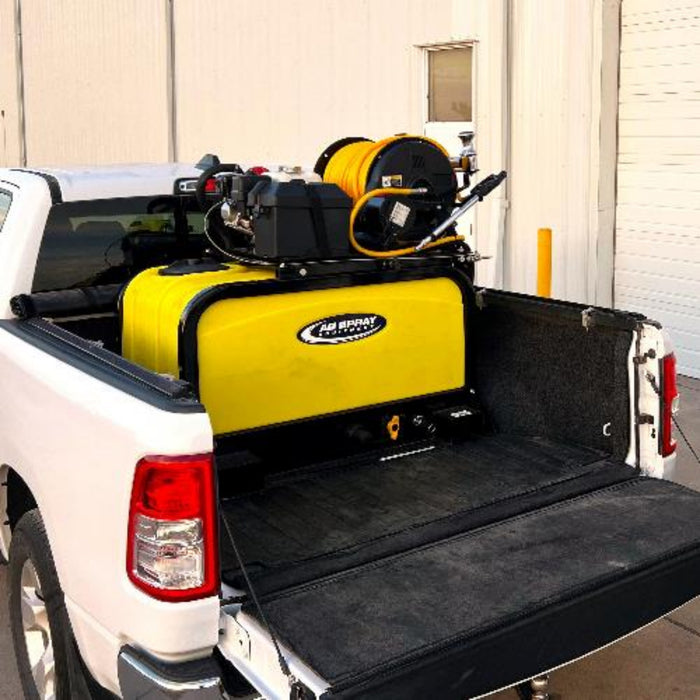

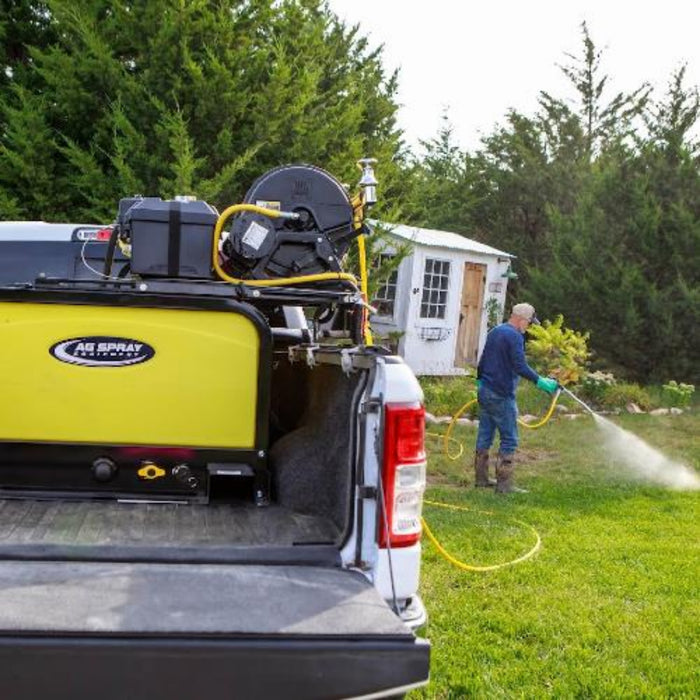

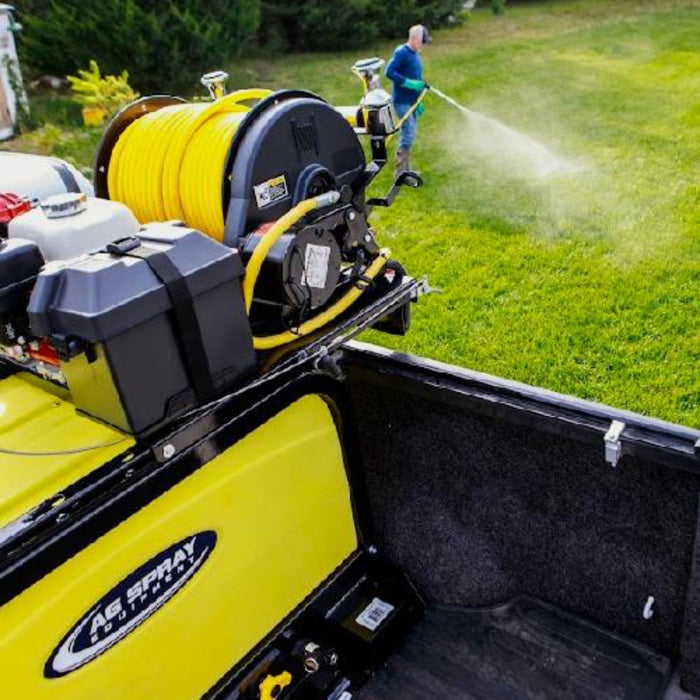

Ag Spray Pro - SS105 Skid Sprayer - Graneer

Ag Spray Pro-SS105 Skid Sprayer

Manufacturer: Ag Spray Equipment
Model # 5303718
$8,253.00 - $8,253.00
$8,253.00
$8,253.00 - $8,253.00
$8,253.00
Availability:
In stock

AUTHORIZED AG SPRAY DEALER

Graneer proudly partners with Ag Spray Equipment ensuring full manufacturer warranty and support.
Request a quote





Setting the 5303718 PRO-SS105 skid sprayer apart is the slide-out system that brings all the controls and hose reel access over the side rail of the vehicle for easy curbside use.  The electric start control and engine throttle are ergonomically located next to the electric hose reel rewind button along with the diaphragm pump control unit.  These controls are positioned so the operator can start the engine, set the engine rpm and adjust the pump pressure from the curbside without having to crawl in the back of the vehicle.  When not in use, release the lock pin and slide the pump and hose reel back over the tank. The unit’s compact design only consumes 46" wide x 35” deep of bed space allowing room for additional equipment and supplies.  The 105 gallon custom molded tank has a sloped floor for complete drainage and a built in baffle to reduce fluid movement during transport.  Powered by a GX160 electric start Honda engine coupled to an AR30 diaphragm pump capable of 580 psi and 9.6 gpm to handle a wide variety of applications. The 300' of 1/2" pvc lined 600 psi rated hose on an electric rewind hose reel allow the operator to cover a wide area from one central location. The heavy steel skid frame with fork lift pockets make installation and removal a simple task.  Standard with a general duty 22" Pro Series spray wand with quick disconnect couplers. Other wands available for more specialized applications.

FEATURES

  • 105‑Gallon Custom-Molded Tank
  • Slide-Out Pump & Hose Reel System
  • Curbside Operator Controls
  • Extensive Reach with Hose Reel
  • Heavy-Duty Skid Frame with Forklift Pockets
  • Versatile Spray Wand
  • Compact Footprint
  • Convenient Maintenance Access

SPECIFICATIONS

Specification Details
Engine Brand Honda GX160 (Electric Start)
Gallons 105 Gallons
Product Type Fire Suppression Skid Unit



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

Setting the 5303718 PRO-SS105 skid sprayer apart is the slide-out system that brings all the controls and hose reel access over the side rail of the vehicle for easy curbside use.  The electric start control and engine throttle are ergonomically located next to the electric hose reel rewind button along with the diaphragm pump control unit.  These controls are positioned so the operator can start the engine, set the engine rpm and adjust the pump pressure from the curbside without having to crawl in the back of the vehicle.  When not in use, release the lock pin and slide the pump and hose reel back over the tank. The unit’s compact design only consumes 46" wide x 35” deep of bed space allowing room for additional equipment and supplies.  The 105 gallon custom molded tank has a sloped floor for complete drainage and a built in baffle to reduce fluid movement during transport.  Powered by a GX160 electric start Honda engine coupled to an AR30 diaphragm pump capable of 580 psi and 9.6 gpm to handle a wide variety of applications. The 300' of 1/2" pvc lined 600 psi rated hose on an electric rewind hose reel allow the operator to cover a wide area from one central location. The heavy steel skid frame with fork lift pockets make installation and removal a simple task.  Standard with a general duty 22" Pro Series spray wand with quick disconnect couplers. Other wands available for more specialized applications.

FEATURES
  • 105‑Gallon Custom-Molded Tank
  • Slide-Out Pump & Hose Reel System
  • Curbside Operator Controls
  • Extensive Reach with Hose Reel
  • Heavy-Duty Skid Frame with Forklift Pockets
  • Versatile Spray Wand
  • Compact Footprint
  • Convenient Maintenance Access
SPECIFICATIONS
Specification Details
Engine Brand Honda GX160 (Electric Start)
Gallons 105 Gallons
Product Type Fire Suppression Skid Unit



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, AG Spray Equipment. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions are made solely by the manufacturer.

Usage Type Warranty Duration
Homeowner (Personal Use) One (1) year from the date of purchase.
Commercial (Business Use) 90 days from the date of purchase.

Coverage and Exclusions

Warranty Term Details
Coverage Limited to defects in material and workmanship.
Claim Costs AG Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
Exclusions This warranty does not cover damage due to normal wear and tear, failure to follow operating instructions, or equipment that has been altered, changed, or repaired by unauthorized parties.

Critical Requirements

  • Proof of Purchase: You must retain a copy of your receipt for the unit, as it is required to validate any warranty service.

  • Reporting Defects: To obtain warranty service, you must provide written notice of the defect during the Warranty Period and within thirty (30) days after the defect becomes apparent.

  • Exclusion of Damages: AG Spray Equipment explicitly disclaims liability for any consequential, incidental, special, or punitive damages.

How to File a Claim

If you experience a problem with your AG Spray product, in most cases, a technical support representative can resolve the problem over the phone.

  1. Gather Info: Have your Sales Receipt, Model Number, and Serial Number ready.

  2. Contact Graneer First: Contact us at support@graneer.com. We will guide you through the process, which often starts with technical troubleshooting via phone.
