LMC Ag 800 Series Nitrogen Coulter Applicator - Graneer

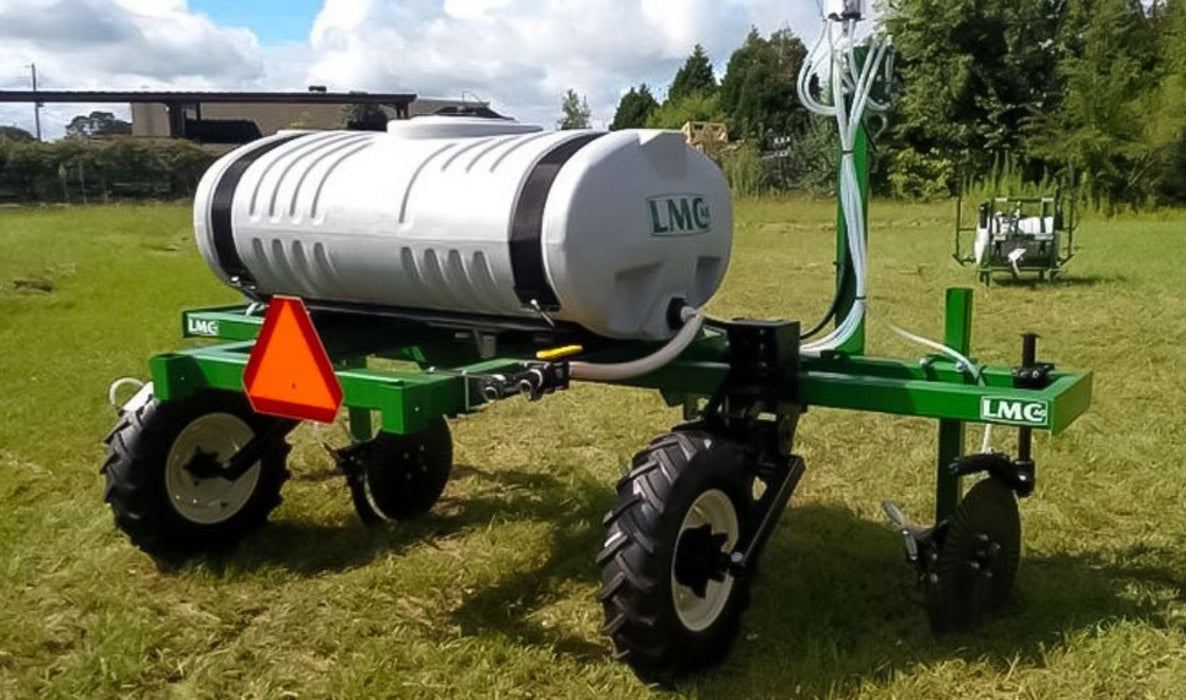

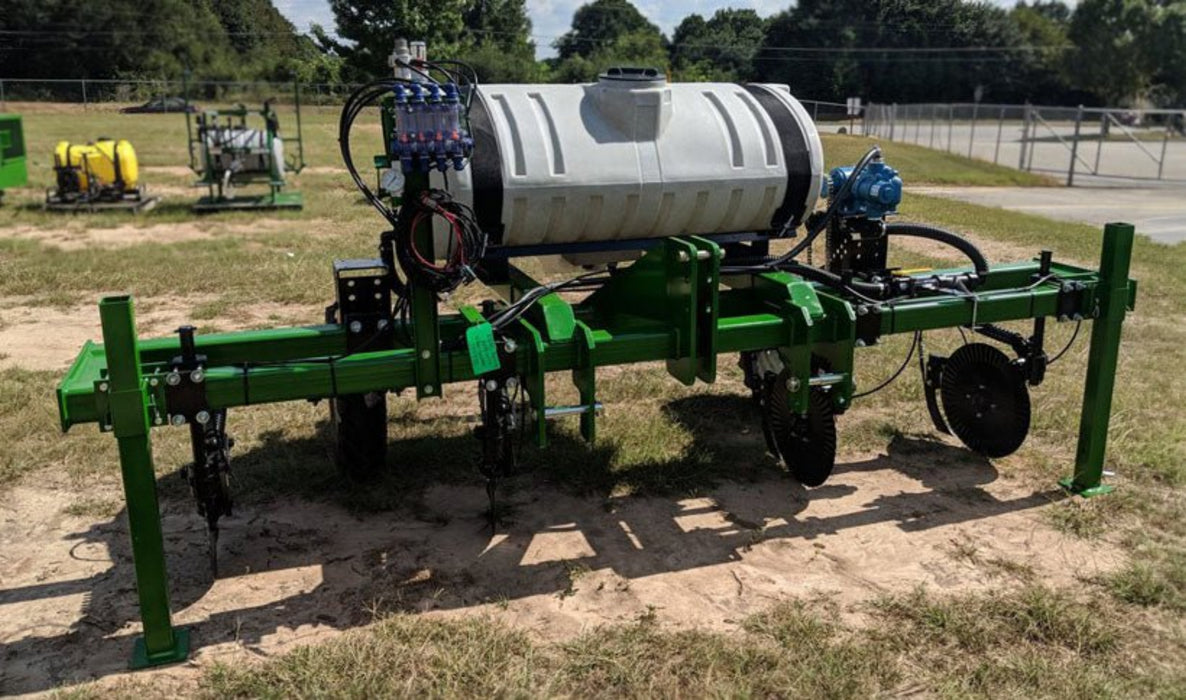

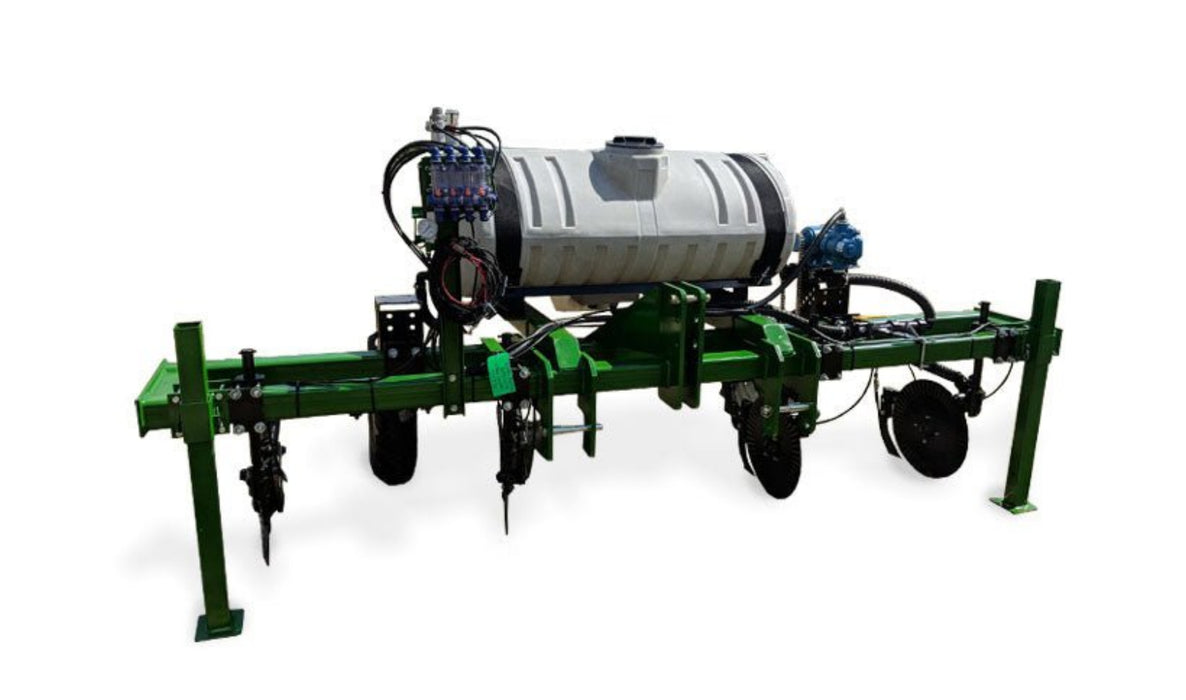

LMC Ag 800 Series Nitrogen Coulter Applicator

Manufacturer: LMC AG
Model #
$25,000.00 - $36,000.00
$25,000.00
$25,000.00 - $36,000.00
$25,000.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

AUTHORIZED LMC AG DEALER

Graneer proudly partners with LMC AG ensuring full manufacturer warranty and support.
Request a quote





The LMC Ag 800 Series Nitrogen Coulter Applicator stands out with its modular row configurations, rugged construction, high-capacity tanks, and reliable application system. Optional flow dividers and integrated handwash tanks further enhance its field efficiency. It’s an optimal solution for farmers seeking precision, durability, and adaptability.

STANDARD FEATURES

  • 4 & 6 Row Rigid Units
  • 8 & 12 Row Hydraulic Fold Units
  • Double 4"x4" Tool Bar
  • 200, 300, 400, or 500 Gallons
  • John Blue Ground Drive Pumps & Gauge Wheels (6055, 7055, 9055)

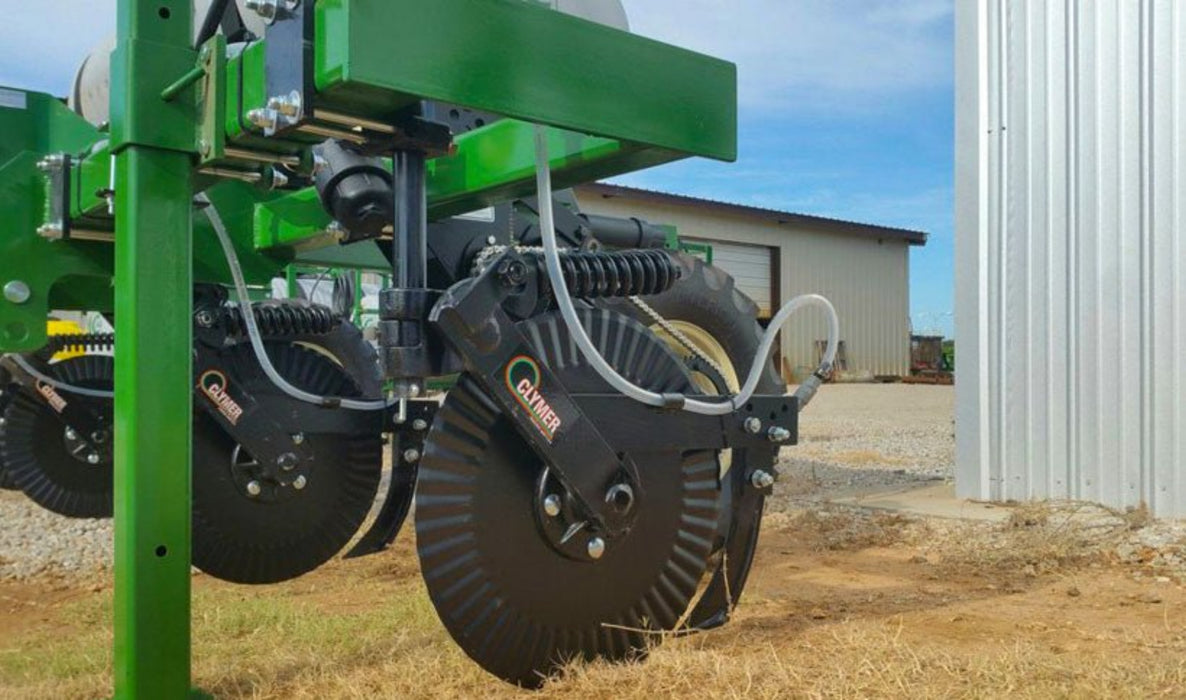

  • 20" Clymer Coulter Blade with Knife or Straight Stream Injection
  • John Blue Flow Monitor System
  • 2" Quick Fill
  • Single or Twin Row Units
  • Quick Disconnect Fittings on Lines

OPTIONS

  • John Blue Flow Divider
  • Handwash Tank

SPECIFICATIONS

Specification Details
Rows 4‑ & 6‑row rigid units; 8‑ & 12‑row units with hydraulic folding
Toolbar Heavy-duty double 4" × 4" structure
Tank Capacity 200 gal, 300 gal, 400 gal, or 500 gal
Pump System John Blue ground-drive pumps with gauge wheels
Injection Method 20" Clymer coulter blades, available in knife or straight-stream injection
Flow Control John Blue Flow Monitor System with quick-disconnect fittings
Refill Port 2" quick-fill port for efficient refilling



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

NATIONAL SHIPPING

Lower 48 USA

EMAIL US

support@graneer.com

Need Help?

Contact our support team today

Business Address

6010 S Willow Way, Greenwoode Village, CO 80111

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The LMC Ag 800 Series Nitrogen Coulter Applicator stands out with its modular row configurations, rugged construction, high-capacity tanks, and reliable application system. Optional flow dividers and integrated handwash tanks further enhance its field efficiency. It’s an optimal solution for farmers seeking precision, durability, and adaptability.

STANDARD FEATURES
  • 4 & 6 Row Rigid Units
  • 8 & 12 Row Hydraulic Fold Units
  • Double 4"x4" Tool Bar
  • 200, 300, 400, or 500 Gallons
  • John Blue Ground Drive Pumps & Gauge Wheels (6055, 7055, 9055)
  • 20" Clymer Coulter Blade with Knife or Straight Stream Injection
  • John Blue Flow Monitor System
  • 2" Quick Fill
  • Single or Twin Row Units
  • Quick Disconnect Fittings on Lines

OPTIONS

  • John Blue Flow Divider
  • Handwash Tank
SPECIFICATIONS
Specification Details
Rows 4‑ & 6‑row rigid units; 8‑ & 12‑row units with hydraulic folding
Toolbar Heavy-duty double 4" × 4" structure
Tank Capacity 200 gal, 300 gal, 400 gal, or 500 gal
Pump System John Blue ground-drive pumps with gauge wheels
Injection Method 20" Clymer coulter blades, available in knife or straight-stream injection
Flow Control John Blue Flow Monitor System with quick-disconnect fittings
Refill Port 2" quick-fill port for efficient refilling



SHIPPING & SUPPORT

Orders are shipped directly from our U.S. partner warehouses with standard lead times varying by product. For detailed information on delivery schedules, tracking, and support, please visit our Shipping Policy.

Have questions or need help choosing the right size or accessories?
Contact us at support@graneer.com or call (720) 213-8845 — our team is here to help.

WARRANTY

This equipment is covered by a Limited Warranty provided directly by the manufacturer, LMC Ag. Graneer is an authorized dealer and will assist you with the claim process, but all final repair/replacement decisions and approvals are made solely by LMC Ag.

Warranty Term LMC Ag Specifics
Duration One (1) year (12 months) from the date the implement is sold by Graneer and put into service.
Coverage Limited to manufacturer's defects in material and workmanship.
Aged Inventory Policy The warranty coverage is reduced based on the date Graneer purchased the implement. If the product was invoiced to Graneer: 2–3 years ago, coverage is 50%; 3–4 years ago, coverage is 25%; and 4+ years ago, coverage is 0%.
Exclusions The warranty does not cover normal wear items, including but not limited to: bearings, slip clutches, hoses, parts making contact with the ground, and tires.

Critical Warranty Requirements

  • Prior Approval is Required: LMC Ag must provide prior approval for any warranty work to be paid. Work performed prior to approval will not be paid.

  • Voidance: The warranty will be void if the machine has been modified, cut, welded, or fabricated in any way without the express prior approval of LMC Ag.

  • Defective Parts Return: Defective parts replaced under warranty must be returned within 30 days, or the customer will be invoiced for the part.

How to File a Claim

To initiate a warranty claim, please contact Graneer first at support@graneer.com. We will guide you through the process, which includes verifying the original invoice date to determine the percentage of remaining warranty coverage.
