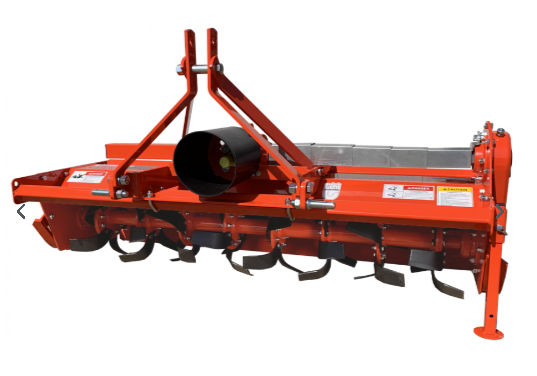

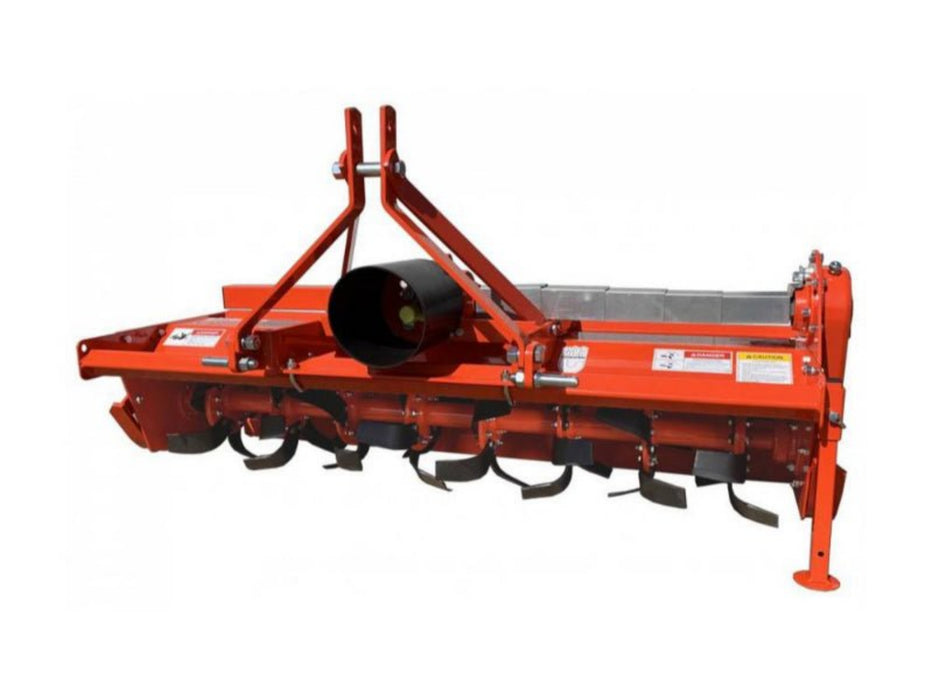

BEFCO Till-Rite T50 Rotary Tiller

Built for versatility and rugged field performance, the Befco Till‑Rite T50 is a side‑shift rotary tiller engineered for 25–50 HP tractors with Cat. 1 three-point linkage. Operating at 540 RPM, this tiller offers superior soil conditioning through a combination of powerful drive components, precise depth control, and robust construction.

MAIN FEATURES

• Highly engineered & rugged gearbox
• Smooth manual side-shift system
• Adjustable side skids for working depth control
• Heavy duty shielded PTO shaft with slip clutch safety  (1 3/8″ ASAE cat. 4)
• Exchangeable sprockets for two working speeds
• Max. working depth 8 3/8″
• Wear protection on chain case
• Parking stand
• Lateral ASA #100 chain drive transmission in oil bath
• Standard six blades per flange for greater stability and finer soil pulverization
• Flanged rotor shaft for easy removal & service
• Outward turned blades keep the rotor supports clean and maximize working width
• Heavy duty full size tiller blades
• 3 point linkage, cat. 1

STANDARD FEATURES

• Built-in manual side shift

BEFCO tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.

• Forward or reverse tilling rotation

BEFCO tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.

• Gearbox manufactured by BEFCO

Unlike other manufacturers who purchase gearboxes from outside suppliers, BEFCO utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals.

• ASA 100  Chain drive

Lateral ASA 100 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.

• Reversible sprockets

Model T50 tillers are equipped with reversible sprockets that allow you obtain two tillage speeds: Standards speed is 226 rpm, Increased speed is 383 rpm.

• Rotor supports

Rotor supports are made out of stamped steel making them more durable than those offered by competitors.

• Flanged rotor shaft

The flanged rotor shaft allows operator to quickly disassemble the rotor from the tiller for easy and comfortable blade service and replacement.

• Six blades per flange

The higher horsepower tractor for which this tiller is designed for, means that it is capable of handling the additional power requested for a rotor with six blades per flange.

• Side skids with Infinite adjustments

Side skids allow for tiller depth adjustment to be set anywhere from 0″ to 8 3/8″.

• ASAE Cat. 1 quick hitch compatible

Compatible with ASAE Cat. 1 quick hitches.

TECHNICAL FEATURES

SHIPPING & SUPPORT

This product ships directly from BEFCO U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.
