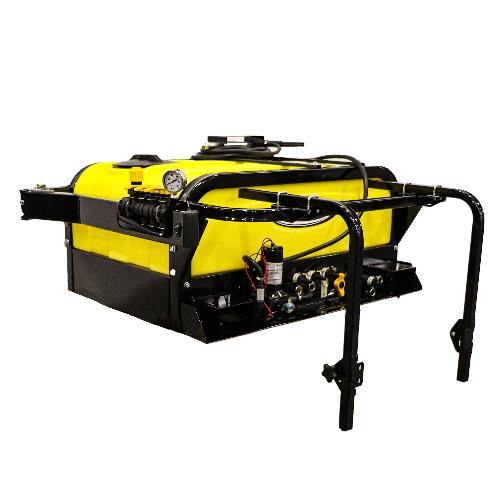

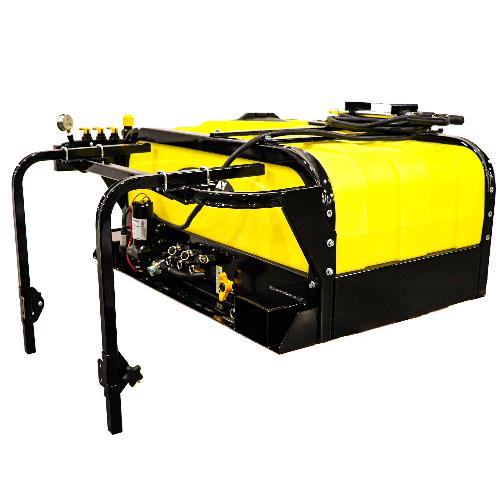

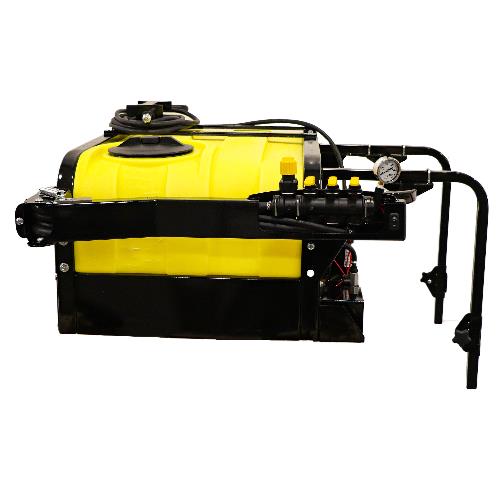

Ag Spray PRO UTV Sprayer 65G/12V/Manual

The 5303225 PROUTV Series 12 Volt configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it's utility, municipality, rangeland or ag. The 12 Volt version is designed to allow the tailgate to be closed on most models of UTV.  The conveniently positioned swing control arm rotates next to UTV cab for easy sprayer control. The control arm has a spring loaded position detent to allow the operator to easily enter and exit the machine and stow the control arm when not in use.  The steel base has fork lift pockets incorporated for convenient installation and removal.  The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out.  The Shurflo 12 Volt pump is rated up to 5.3 GPM with demand switch and up to 60 PSI. The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose.  Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.  BOOM MUST BE ORDERED SEPARATELY.

FEATURES

• 65-gallon molded poly tank with internal baffle and sloped base for smooth liquid flow and complete drainage
• Tailgate-closable design, thanks to efficient footprint and low-profile layout for compact mounting
• Swing arm control positioned beside UTV cab, featuring a spring-loaded detent for safe entry/exit and compact stowage
• Steel skid base built with forklift pockets for easy installation and removal
• Shurflo 12V pump delivers up to 5.3 GPM at 60 PSI with demand switch operation
• Pro-series long-range handgun with adjustable pattern tip sprays up to 38 ft horizontally and 27 ft vertically; includes 25 ft of 3/8″ hose
• Pressure-controlled spraying through trigger modulation—straight stream to wide fan in one hand motion
• Complete clean-out design with molded-in outlet fitting and baffle for easy maintenance and reduced waste

Spray boom options include –
Boomless 34’ Coverage, 3.8 GPM At 40 PSI (3 Section)
Traditional Folding 7 Nozzle Boom

An optional 50 feet hose reel with 180 degree swivel base can easily be added to any PROUTV Series Sprayer

SPECIFICATIONS

SHIPPING & SUPPORT

This product ships directly from Ag Spray Equipment U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@graneer.com or call (720) 213-8845 — our team is here to help.
